Step1: Product
Taoglas - Public Safety PATR.FP.17.B.5M

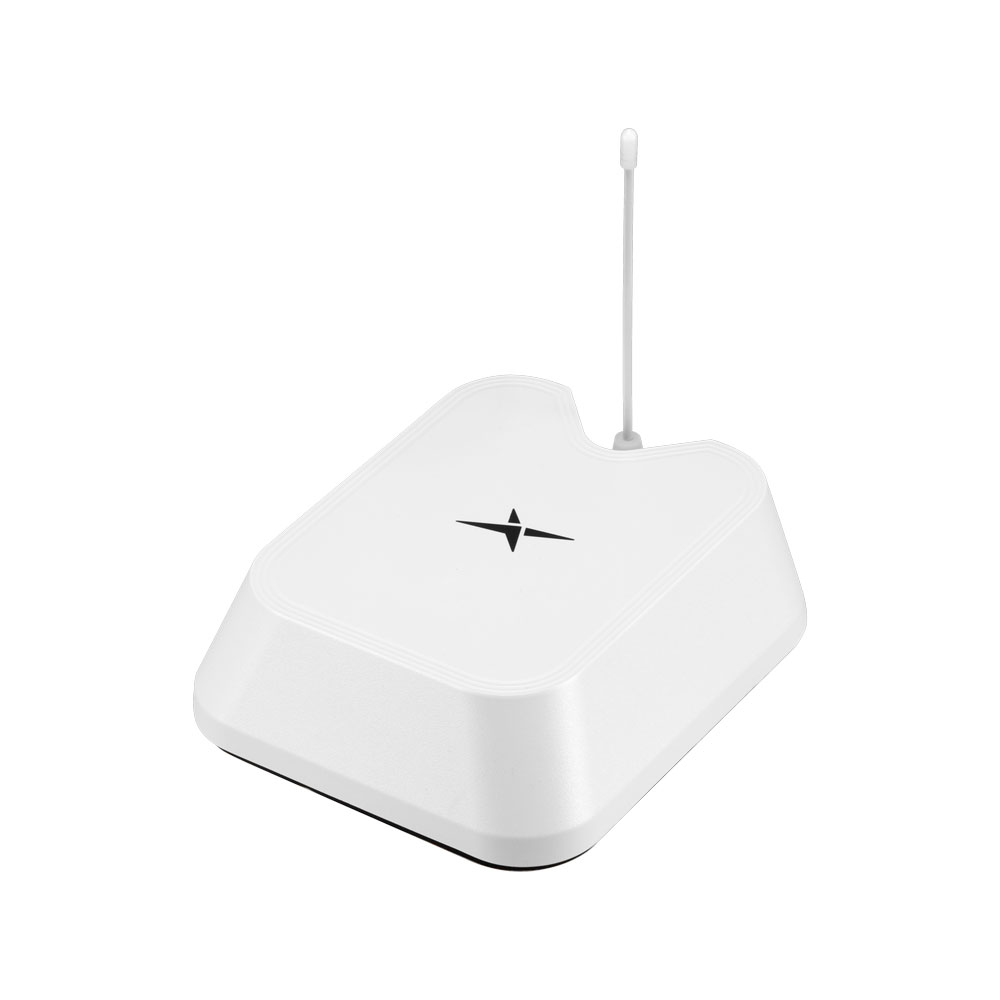

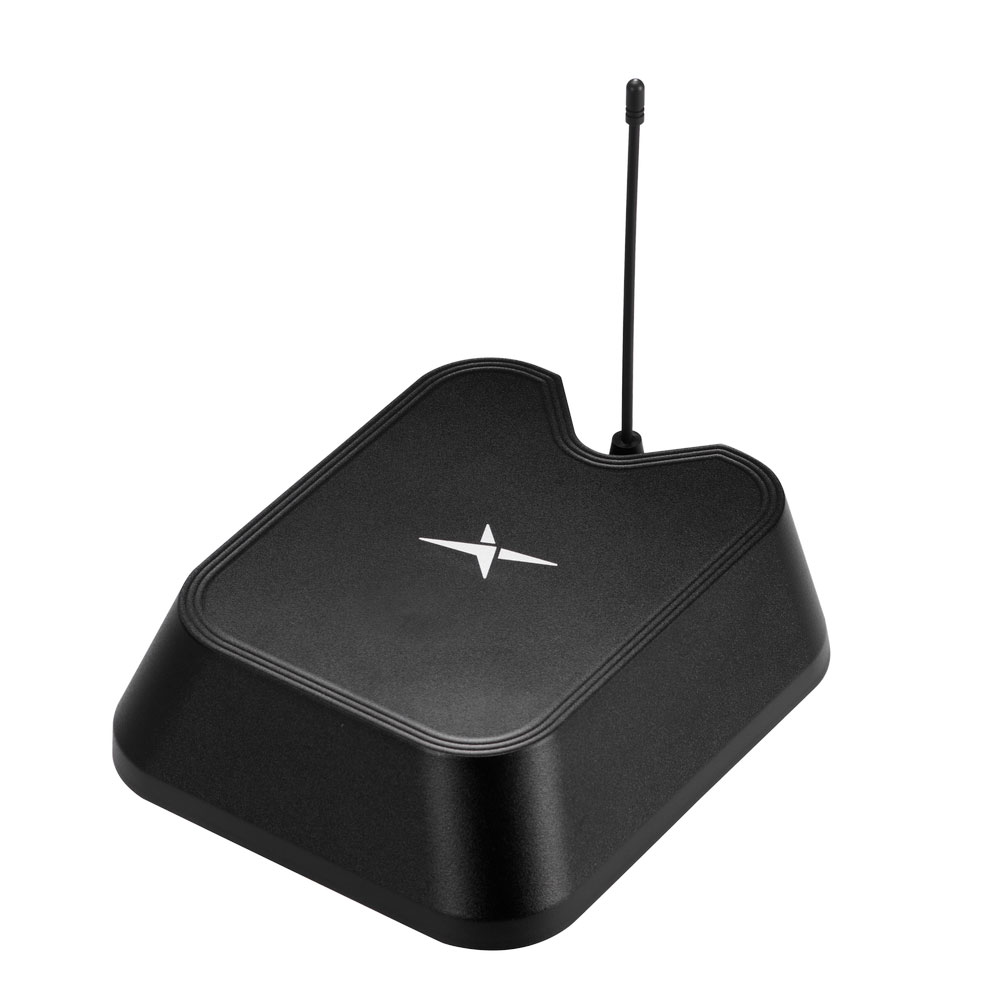

Image shown is a representation only
Manufacturer
Manufacturer No
PATR.FP.17.B.5M
Packaging
Bulk
Description
EXTERNAL ANTENNAS BLACK
Detailed Description
RF ANTENNA 4G, 5G, GNSS, LMR, LTE, SDARS, TETRA, UHF, VHF, Wi-Fi Module Fakra (2) Connector Mount
DataSheet
Gain
1.55dBi, 1.93dBi, 1.84dBi, 3.56dBi, 2.24dBi, 4.28dBi, 1.62dBi, 1.97dBi, 2.78dBi, 1.46dBi, 5.59dBi, 3.08dBi, 3.08dBi, 4.06dBi, 5.97dBi, 8.5dBi, 7.39dBi, 7.5dBi, 7.95dBi, 8.37dBi
VSWR
2, 3
Series
Patriot
Features
Cable - 5m, LNA, Filter
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Termination
Fakra (2)
Antenna Type
Module
Applications
4G, 5G, GNSS, LMR, LTE, SDARS, TETRA, UHF, VHF, Wi-Fi
Height (Max)
2.362" (60.00mm)
Manufacturer
Taoglas - Public Safety
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
617MHz ~ 7.125GHz
Number of Bands
20
Ingress Protection
IP69K
RF Family/Standard
Cellular, Navigation, WiFi
Base Product Number
PATR.FP.17
Frequency (Center/Band)
657.5MHz, 761MHz, 800MHz, 892MHz, 1.176GHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.603GHz, 1.955GHz, 2.332GHz, 2.338GHz, 2.338GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.5GHz, 5.537GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 1.55dBi, 1.93dBi, 1.84dBi, 3.56dBi, 2.24dBi, 4.28dBi, 1.62dBi, 1.97dBi, 2.78dBi, 1.46dBi, 5.59dBi, 3.08dBi, 3.08dBi, 4.06dBi, 5.97dBi, 8.5dBi, 7.39dBi, 7.5dBi, 7.95dBi, 8.37dBi |
| VSWR | 2, 3 |
| Series | Patriot |
| Features | Cable - 5m, LNA, Filter |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Termination | Fakra (2) |
| Antenna Type | Module |
| Applications | 4G, 5G, GNSS, LMR, LTE, SDARS, TETRA, UHF, VHF, Wi-Fi |
| Height (Max) | 2.362" (60.00mm) |
| Manufacturer | Taoglas - Public Safety |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 7.125GHz |
| Number of Bands | 20 |
| Ingress Protection | IP69K |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Base Product Number | PATR.FP.17 |
| Frequency (Center/Band) | 657.5MHz, 761MHz, 800MHz, 892MHz, 1.176GHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.603GHz, 1.955GHz, 2.332GHz, 2.338GHz, 2.338GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.5GHz, 5.537GHz, 6.525GHz |
