Step1: Product
Tamura T0603-6N8G

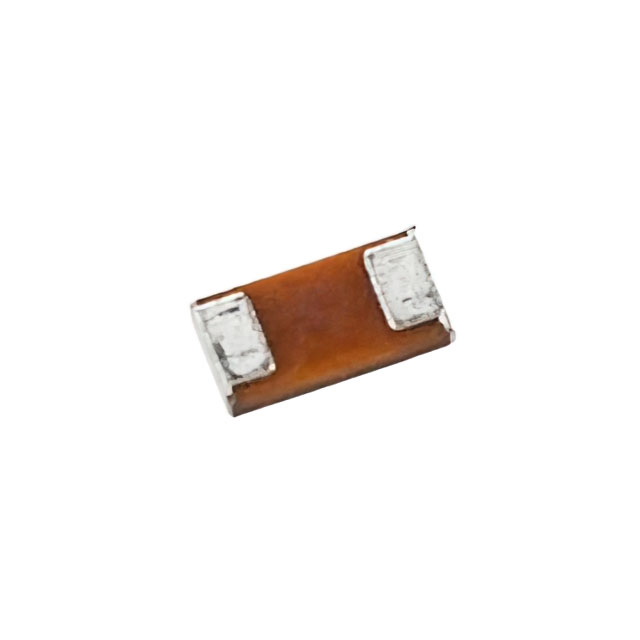

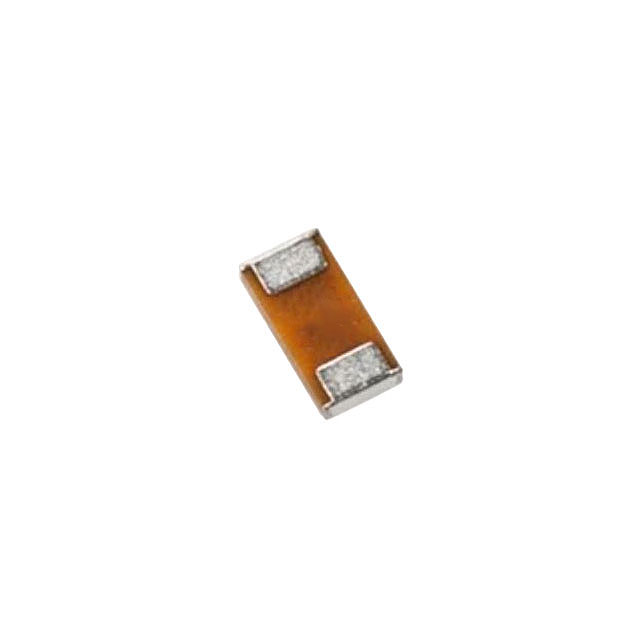

Image shown is a representation only
Manufacturer
Manufacturer No
T0603-6N8G
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 6.8NH 700MA 90 MOHM
Detailed Description
6.8 nH Unshielded Drum Core, Wirewound Inductor 700 mA 90mOhm Max 0603 (1608 Metric)
DataSheet
Mfr
Tamura
Type
Drum Core, Wirewound
Series
T0603
Q @ Freq
28 @ 250MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±2%
Inductance
6.8 nH
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Material - Core
Ceramic
Size / Dimension
0.067" L x 0.043" W (1.70mm x 1.10mm)
DC Resistance (DCR)
90mOhm Max
Current Rating (Amps)
700 mA
Height - Seated (Max)
0.043" (1.10mm)
Supplier Device Package
0603 (1608 Metric)
Frequency - Self Resonant
5.8GHz
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | Tamura |
| Type | Drum Core, Wirewound |
| Series | T0603 |
| Q @ Freq | 28 @ 250MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±2% |
| Inductance | 6.8 nH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.067" L x 0.043" W (1.70mm x 1.10mm) |
| DC Resistance (DCR) | 90mOhm Max |
| Current Rating (Amps) | 700 mA |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Supplier Device Package | 0603 (1608 Metric) |
| Frequency - Self Resonant | 5.8GHz |
| Inductance Frequency - Test | 250 MHz |
