Step1: Product

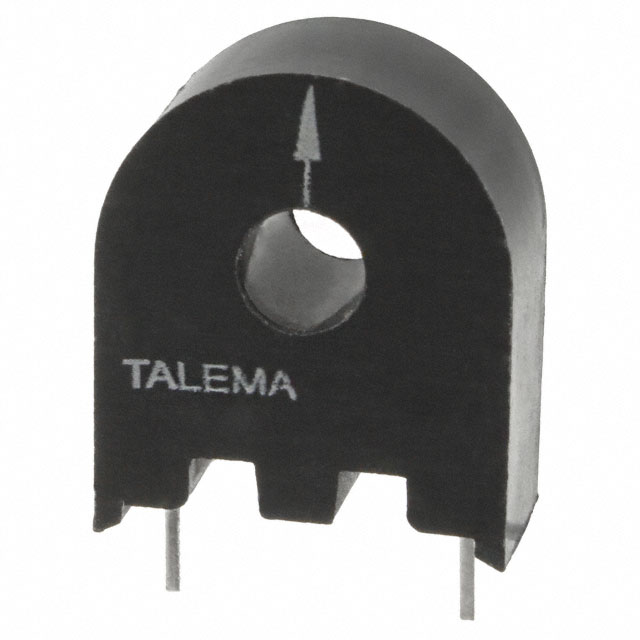

Talema Group LLC AS-104
Image shown is a representation only
Manufacturer
Manufacturer No
AS-104
Packaging
Tray
Description
CURR SENSE XFMR 1:500 15A T/H
Detailed Description
15 A 1:500 Current Sense Transformer 20kHz ~ 200kHz 25Ohm Secondary 700 mH Through Hole
DataSheet
Type
Non-Invasive (Solid Core)
Series
AS
Packaging
Tray
Inductance
700 mH
Part Status
Active
Manufacturer
Talema Group LLC
Mounting Type
Through Hole
ET (Volt-Time)
1500VµS
Frequency Range
20kHz ~ 200kHz
Size / Dimension
0.677" L x 0.375" W (17.20mm x 9.53mm)
Termination Style
PC Pin
DC Resistance (DCR)
25Ohm Secondary
Current Rating (Amps)
15 A
Height - Seated (Max)
0.803" (20.40mm)
Turns Ratio - Primary:Secondary
1:500
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Series | AS |
| Packaging | Tray |
| Inductance | 700 mH |
| Part Status | Active |
| Manufacturer | Talema Group LLC |
| Mounting Type | Through Hole |
| ET (Volt-Time) | 1500VµS |
| Frequency Range | 20kHz ~ 200kHz |
| Size / Dimension | 0.677" L x 0.375" W (17.20mm x 9.53mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 25Ohm Secondary |
| Current Rating (Amps) | 15 A |
| Height - Seated (Max) | 0.803" (20.40mm) |
| Turns Ratio - Primary:Secondary | 1:500 |
