Step1: Product

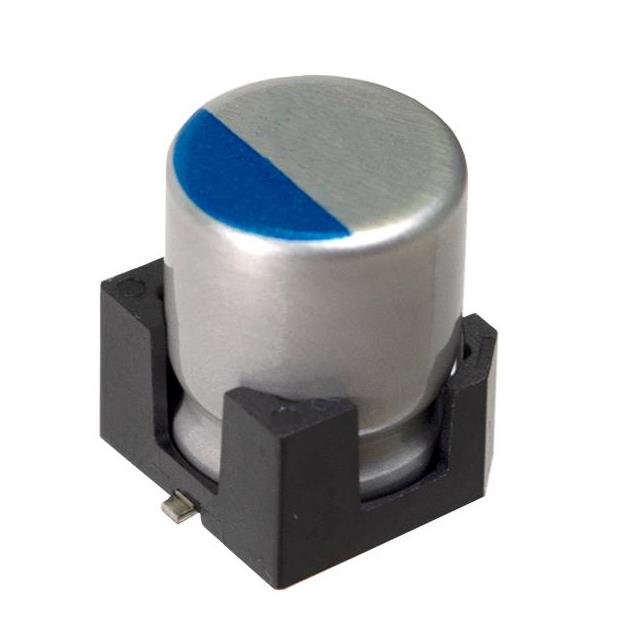

Taiyo Yuden RAHTK331M1UGL5005E
Image shown is a representation only
Manufacturer
Manufacturer No
RAHTK331M1UGL5005E
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CAP ALUMHYB 330UF 20% 50V SMD
Detailed Description
330 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 4000 Hrs @ 125°C
DataSheet
Type
Hybrid
Series
HTK
Features
Anti-Vibration
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Tolerance
±20%
Capacitance
330 µF
Part Status
Active
Applications
General Purpose
Manufacturer
Taiyo Yuden
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
50 V
Lifetime @ Temp.
4000 Hrs @ 125°C
Size / Dimension
0.492" Dia (12.50mm)
Height - Seated (Max)
0.551" (14.00mm)
Operating Temperature
-55°C ~ 125°C
Surface Mount Land Size
0.512" L x 0.512" W (13.00mm x 13.00mm)
Ripple Current @ Low Frequency
300 mA @ 120 Hz
Ripple Current @ High Frequency
3 A @ 100 kHz
ESR (Equivalent Series Resistance)
20mOhm
| Attribute | Value |
|---|---|
| Type | Hybrid |
| Series | HTK |
| Features | Anti-Vibration |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 330 µF |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Taiyo Yuden |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 50 V |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 20mOhm |
