Step1: Product
TAI-TECH Advanced Electronics Co., Ltd. WCM 7060FASV-301-LM

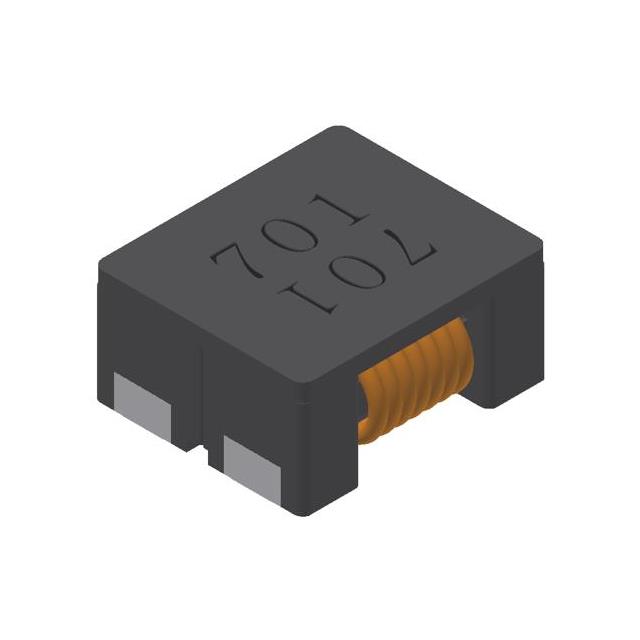

Image shown is a representation only
Manufacturer
Manufacturer No
WCM 7060FASV-301-LM
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR)
Description
CMC 5A 2LN 300 OHM SMD AEC-Q200
Detailed Description
2 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 5A DCR 10mOhm
Datasheet
Series
WCM7060FASV
Ratings
AEC-Q200
Packaging
Tape & Reel (TR)
Height (Max)
0.150" (3.80mm)
Manufacturer
TAI-TECH Advanced Electronics Co., Ltd.
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.276" L x 0.236" W (7.00mm x 6.00mm)
Voltage Rating - DC
80V
Current Rating (Max)
5A
Impedance @ Frequency
300 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
DC Resistance (DCR) (Max)
10mOhm
| Attribute | Value |
|---|---|
| Series | WCM7060FASV |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) |
| Height (Max) | 0.150" (3.80mm) |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 5A |
| Impedance @ Frequency | 300 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) (Max) | 10mOhm |
