Step1: Product
TAI-TECH Advanced Electronics Co., Ltd. AHP 252010FA-R47M

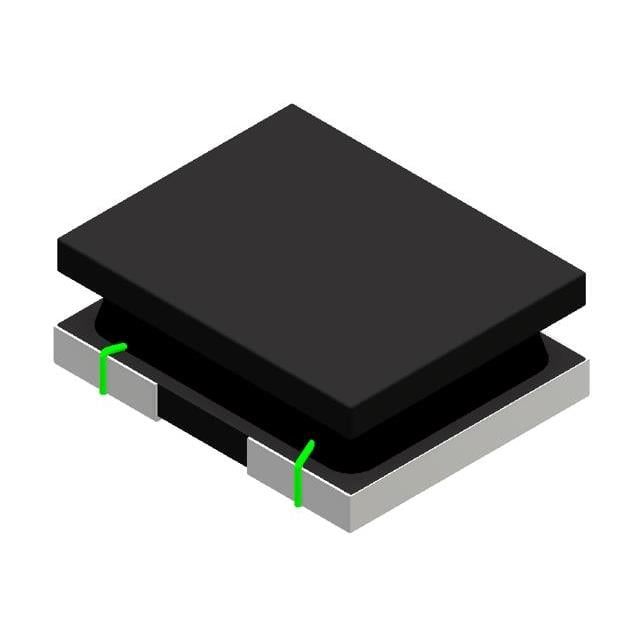

Image shown is a representation only
Manufacturer
Manufacturer No
AHP 252010FA-R47M
Package
1008 (2520 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 470NH 4.8A 35 MOHM SMD
Detailed Description
470 nH Unshielded Wirewound Inductor 4.8 A 35mOhm Max 1008 (2520 Metric)
DataSheet
Mfr
TAI-TECH Advanced Electronics Co., Ltd.
Type
Wirewound
Series
AHP252010FA
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Inductance
470 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1008 (2520 Metric)
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
DC Resistance (DCR)
35mOhm Max
Current Rating (Amps)
4.8 A
Height - Seated (Max)
0.039" (1.00mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1008
Current - Saturation (Isat)
5.9A
Inductance Frequency - Test
1 MHz
| Attribute | Value |
|---|---|
| Mfr | TAI-TECH Advanced Electronics Co., Ltd. |
| Type | Wirewound |
| Series | AHP252010FA |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 470 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DC Resistance (DCR) | 35mOhm Max |
| Current Rating (Amps) | 4.8 A |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1008 |
| Current - Saturation (Isat) | 5.9A |
| Inductance Frequency - Test | 1 MHz |
