Step1: Product

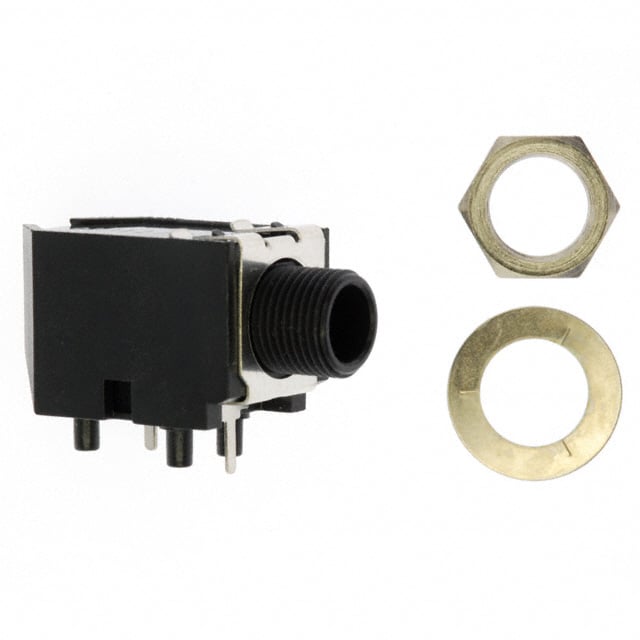

Switchcraft Inc. RN112BPC
Image shown is a representation only
Manufacturer
Manufacturer No
RN112BPC
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN JACK STEREO 6.35MM R/A
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
Switchcraft Inc.
Gender
Female
Series
Hi-D JAX® RN
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Thread Size
3/8"-32
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Panel Hole Size
0.375" (9.52mm)
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Internal Switch(s)
Does Not Contain Switch
Base Product Number
RN112B
Contact Material - Plating
Silver
Number of Positions/Contacts
3 Conductors, 3 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Switchcraft Inc. |
| Gender | Female |
| Series | Hi-D JAX® RN |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Thread Size | 3/8"-32 |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Panel Hole Size | 0.375" (9.52mm) |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | RN112B |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
