Step1: Product
Switchcraft Inc. MDSL2A

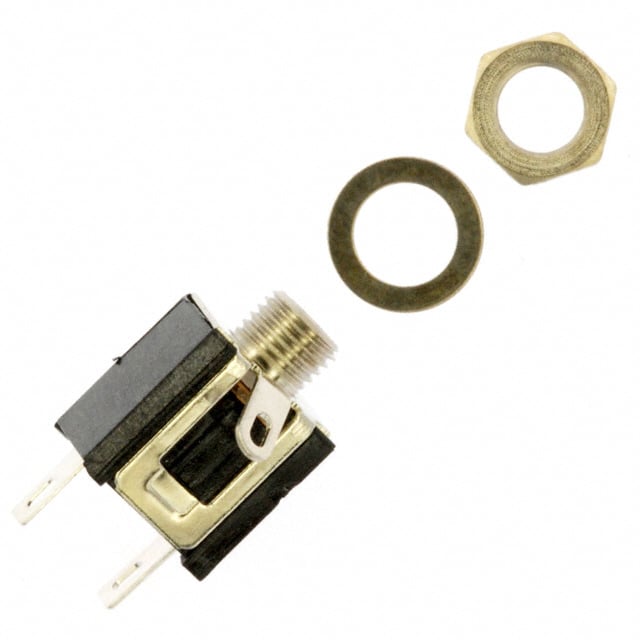

Image shown is a representation only
Manufacturer
Manufacturer No
MDSL2A
Packaging
Bulk
Description
CONN JACK MONO 2.46MM PNL MNT
Detailed Description
2.46mm ID (0.097") Phone Jack Mono Connector Solder Eyelet(s)
DataSheet
Mfr
Switchcraft Inc.
Gender
Female
Series
Micro-D JAX®
Features
Mounting Hardware, Thread Lock
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder Eyelet(s)
Thread Size
#10-48
Signal Lines
Mono
Mounting Type
Panel Mount, Through Hole
Connector Type
Phone Jack
Actual Diameter
0.101" (2.57mm)
Contact Material
Copper Alloy
Housing Material
Plastic
Internal Switch(s)
Single Switch
Operating Temperature
-20°C ~ 65°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.46mm ID (0.097")
| Attribute | Value |
|---|---|
| Mfr | Switchcraft Inc. |
| Gender | Female |
| Series | Micro-D JAX® |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Thread Size | #10-48 |
| Signal Lines | Mono |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Phone Jack |
| Actual Diameter | 0.101" (2.57mm) |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| Internal Switch(s) | Single Switch |
| Operating Temperature | -20°C ~ 65°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.46mm ID (0.097") |
