Step1: Product
Switchcraft Inc. 35RAPC6CHWNSN

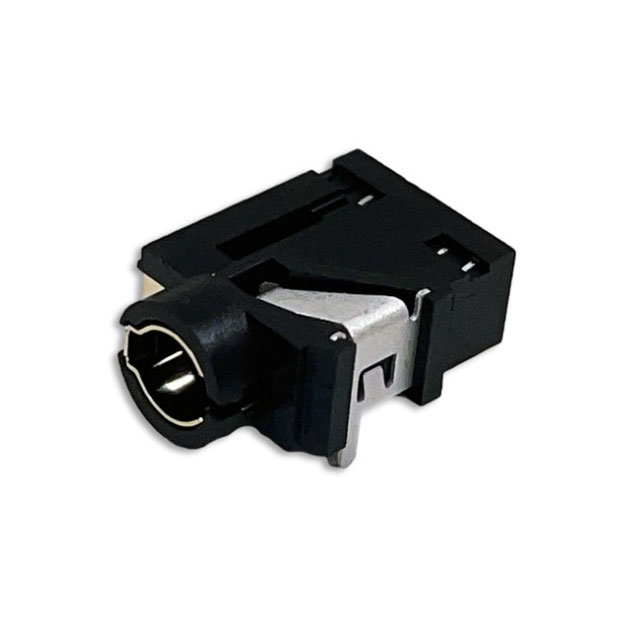

Image shown is a representation only
Manufacturer
Manufacturer No
35RAPC6CHWNSN
Packaging
Tray
Description
3.5MM RAPC JACK, WIDE BODY, TRRS
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
Mfr
Switchcraft Inc.
Gender
Female
Series
35
Features
Board Guide
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Internal Switch(s)
Single Switch
Mating Length/Depth
0.551" (14.00mm)
Contact Material - Plating
Tin
Number of Positions/Contacts
4 Conductors, 5 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Switchcraft Inc. |
| Gender | Female |
| Series | 35 |
| Features | Board Guide |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 4 Conductors, 5 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
