Step1: Product

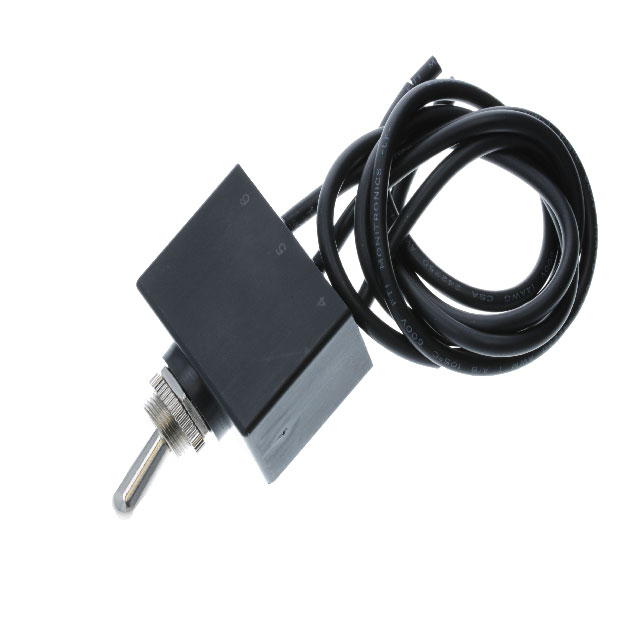

Switch Components TB1-1G-DC-WW
Image shown is a representation only
Manufacturer
Manufacturer No
TB1-1G-DC-WW
Packaging
Bulk
Description
SWITCH TOGGLE SPDT 25A 12V
Detailed Description
Toggle Switch SPDT Panel Mount
DataSheet
Mfr
Switch Components
Series
TB1
Circuit
SPDT
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard Round
Mounting Type
Panel Mount
Bushing Thread
15/32-32
Actuator Length
15.30mm
Electrical Life
6,000 Cycles
Switch Function
Mom-Off-Mom
Actuator Material
Brass, Nickel Plated
Termination Style
Wire Leads
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
TB1-1G
Voltage Rating - DC
12 V
Current Rating (Amps)
25A (DC)
Operating Temperature
-40°C ~ 85°C
Panel Cutout Dimensions
Circular - 12.00mm Dia
| Attribute | Value |
|---|---|
| Mfr | Switch Components |
| Series | TB1 |
| Circuit | SPDT |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard Round |
| Mounting Type | Panel Mount |
| Bushing Thread | 15/32-32 |
| Actuator Length | 15.30mm |
| Electrical Life | 6,000 Cycles |
| Switch Function | Mom-Off-Mom |
| Actuator Material | Brass, Nickel Plated |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | TB1-1G |
| Voltage Rating - DC | 12 V |
| Current Rating (Amps) | 25A (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 12.00mm Dia |
