Step1: Product
SURGE OCV470M1CTR-0606S

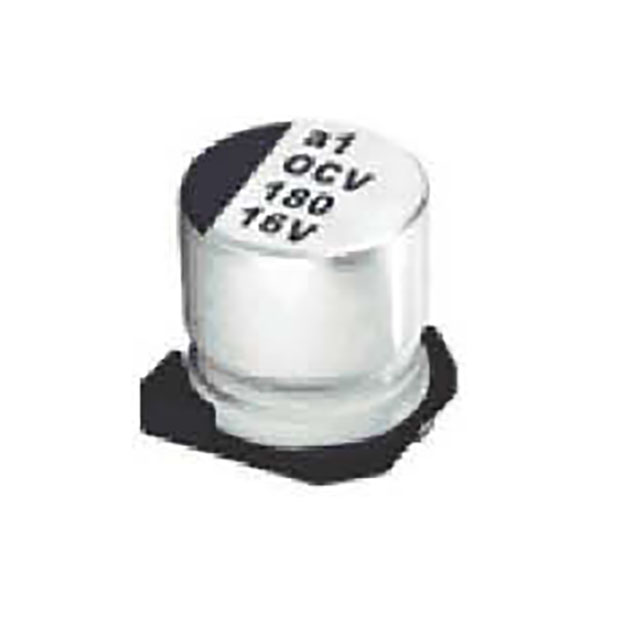

Image shown is a representation only
Manufacturer
Manufacturer No
OCV470M1CTR-0606S
Package
Radial, Can - SMD
Packaging
Strip
Description
CAP ALUM POLY 47UF 20% 16V SMD
Detailed Description
47 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 2000 Hrs @ 105°C
DataSheet
Type
Polymer
Series
OCV
Packaging
Strip
Tolerance
±20%
Capacitance
47 µF
Part Status
Active
Applications
General Purpose
Manufacturer
SURGE
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
16 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
0.248" Dia (6.30mm)
Height - Seated (Max)
0.236" (6.00mm)
Operating Temperature
-55°C ~ 105°C
Surface Mount Land Size
0.260" L x 0.260" W (6.60mm x 6.60mm)
Ripple Current @ Low Frequency
82.5 mA @ 120 Hz
Ripple Current @ High Frequency
1.65 A @ 100 kHz
ESR (Equivalent Series Resistance)
50mOhm
| Attribute | Value |
|---|---|
| Type | Polymer |
| Series | OCV |
| Packaging | Strip |
| Tolerance | ±20% |
| Capacitance | 47 µF |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | SURGE |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Ripple Current @ Low Frequency | 82.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 50mOhm |
