Step1: Product

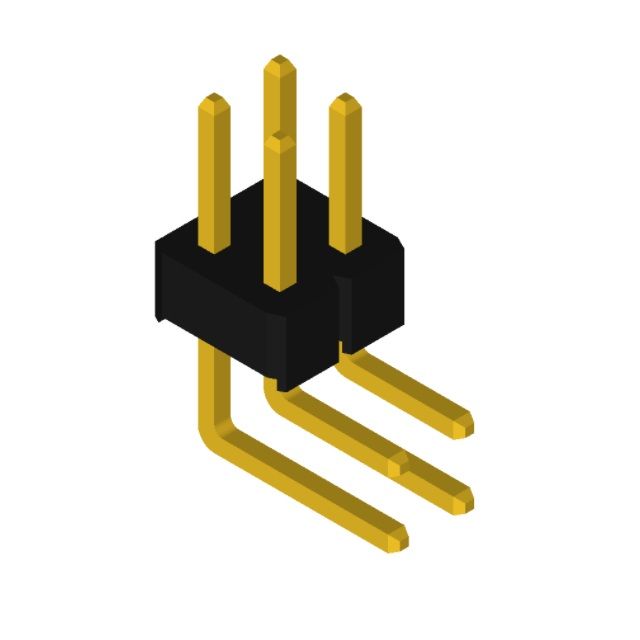

SUPERIOR TECH PHDD-RS004G1ABOPA-C072
Image shown is a representation only
Manufacturer
Manufacturer No
PHDD-RS004G1ABOPA-C072
Packaging
Bag
Description
MALE HEADER RIGHT ANGLE THROUGH
Detailed Description
Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
Datasheet
Mfr
SUPERIOR TECH
Style
Board to Board
Series
PHDD
Packaging
Bag
Shrouding
Unshrouded
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.157" (4.00mm)
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
4
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Contact Length - Post
0.154" (3.91mm)
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 125°C
Overall Contact Length
0.110" (2.80mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.154" (3.91mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | SUPERIOR TECH |
| Style | Board to Board |
| Series | PHDD |
| Packaging | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.157" (4.00mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 4 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.154" (3.91mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Overall Contact Length | 0.110" (2.80mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.154" (3.91mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
