Step1: Product

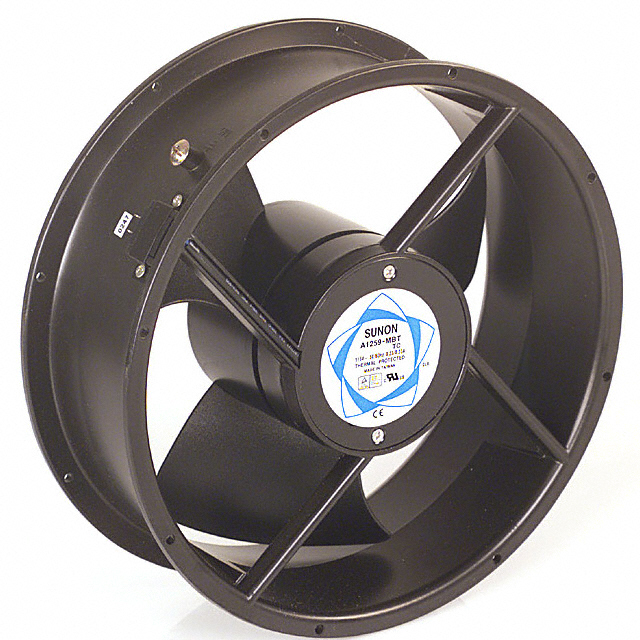

Sunon Fans A1259MBT-TC
Image shown is a representation only
Manufacturer
Manufacturer No
A1259MBT-TC
Description
FAN AXIAL 254X89MM 115VAC TERM
Detailed Description
Fan Tubeaxial 115VAC Round - 254mm Dia Ball 665.0 CFM (18.62m³/min) 2 Terminals
DataSheet
RPM
1600 RPM
Noise
52.0dB(A)
Width
89.00mm
Series
A
Weight
4.4 lbs (2 kg)
Air Flow
665.0 CFM (18.62m³/min)
Fan Type
Tubeaxial
Part Status
Obsolete
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Sunon Fans
Power (Watts)
23.00W
Voltage Range
80 ~ 125VAC
Approval Agency
CE, CUR, TUV, UL
Static Pressure
0.360 in H2O (89.6 Pa)
Voltage - Rated
115VAC
Lifetime @ Temp.
50000 Hrs @ 25°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Round - 254mm Dia
Current Rating (Amps)
0.230A
Operating Temperature
14 ~ 176°F (-10 ~ 80°C)
| Attribute | Value |
|---|---|
| RPM | 1600 RPM |
| Noise | 52.0dB(A) |
| Width | 89.00mm |
| Series | A |
| Weight | 4.4 lbs (2 kg) |
| Air Flow | 665.0 CFM (18.62m³/min) |
| Fan Type | Tubeaxial |
| Part Status | Obsolete |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Sunon Fans |
| Power (Watts) | 23.00W |
| Voltage Range | 80 ~ 125VAC |
| Approval Agency | CE, CUR, TUV, UL |
| Static Pressure | 0.360 in H2O (89.6 Pa) |
| Voltage - Rated | 115VAC |
| Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 254mm Dia |
| Current Rating (Amps) | 0.230A |
| Operating Temperature | 14 ~ 176°F (-10 ~ 80°C) |
