Step1: Product

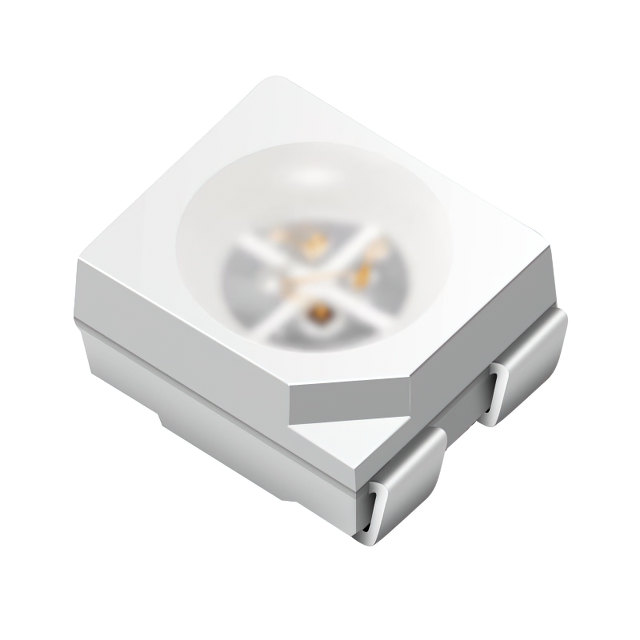

SunLED XZMECBDDG45S
Image shown is a representation only
Manufacturer
Manufacturer No
XZMECBDDG45S
Package
4-PLCC
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB CLEAR 4PLCC SMD
Detailed Description
Red, Green, Blue (RGB) 621nm Red, 525nm Green, 460nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-PLCC
Datasheet
Mfr
SunLED
Color
Red, Green, Blue (RGB)
Lens Size
2.40mm Dia
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
Colorless
Lens Style
Round with Flat Top
Height (Max)
2.10mm
Configuration
Common Anode
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
4-PLCC
Size / Dimension
3.20mm L x 2.80mm W
Lens Transparency
Clear
Wavelength - Peak
630nm Red, 515nm Green, 465nm Blue
Base Product Number
XZMECBDDG45
Millicandela Rating
218mcd Red, 497mcd Green, 98mcd Blue
Wavelength - Dominant
621nm Red, 525nm Green, 460nm Blue
Supplier Device Package
4-PLCC
Voltage - Forward (Vf) (Typ)
2V Red, 3.3V Green, 3.3V Blue
| Attribute | Value |
|---|---|
| Mfr | SunLED |
| Color | Red, Green, Blue (RGB) |
| Lens Size | 2.40mm Dia |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | Colorless |
| Lens Style | Round with Flat Top |
| Height (Max) | 2.10mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 630nm Red, 515nm Green, 465nm Blue |
| Base Product Number | XZMECBDDG45 |
| Millicandela Rating | 218mcd Red, 497mcd Green, 98mcd Blue |
| Wavelength - Dominant | 621nm Red, 525nm Green, 460nm Blue |
| Supplier Device Package | 4-PLCC |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
