Step1: Product

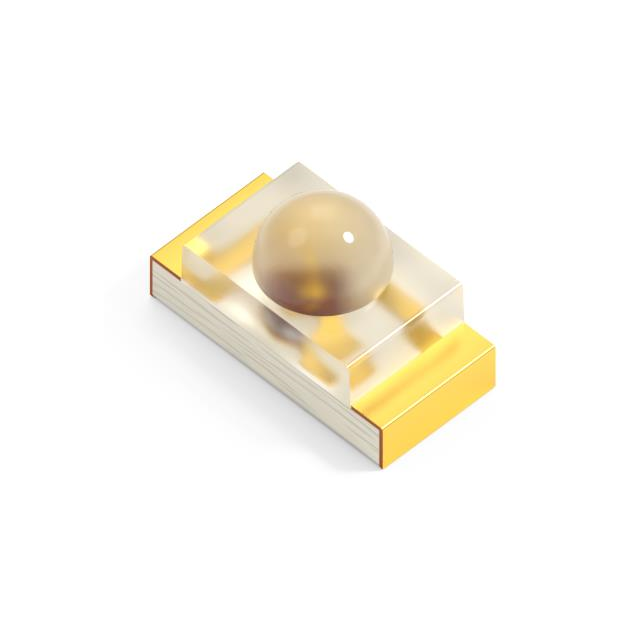

SunLED XZCM2CRK53WA-8VF
Image shown is a representation only
Manufacturer
Manufacturer No
XZCM2CRK53WA-8VF
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RED CLEAR 2SMD
Detailed Description
Red 625nm LED Indication - Discrete 1.8V 0603 (1608 Metric)
DataSheet
Mfr
SunLED
Color
Red
Series
Ultra Low Current
Lens Size
0.35mm Dia
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Colorless
Lens Style
Round with Domed Top
Part Status
Active
Height (Max)
1.10mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
60°
Current - Test
2mA
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Clear
Wavelength - Peak
640nm
Base Product Number
XZCM2
Millicandela Rating
317mcd
Wavelength - Dominant
625nm
Supplier Device Package
2-SMD
Voltage - Forward (Vf) (Typ)
1.8V
| Attribute | Value |
|---|---|
| Mfr | SunLED |
| Color | Red |
| Series | Ultra Low Current |
| Lens Size | 0.35mm Dia |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Part Status | Active |
| Height (Max) | 1.10mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 60° |
| Current - Test | 2mA |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 640nm |
| Base Product Number | XZCM2 |
| Millicandela Rating | 317mcd |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | 2-SMD |
| Voltage - Forward (Vf) (Typ) | 1.8V |
