Step1: Product

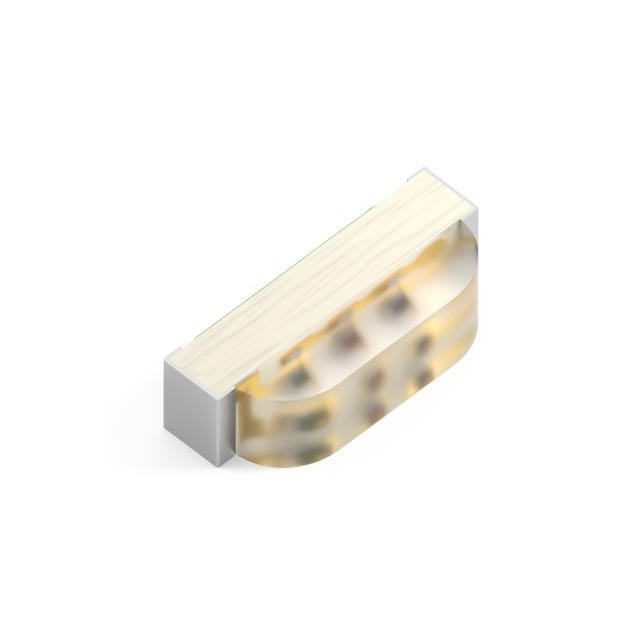

SunLED XZCCBDMEDGK161W
Image shown is a representation only
Manufacturer
Manufacturer No
XZCCBDMEDGK161W
Package
4-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB CLEAR 4SMD R/A
Detailed Description
Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.8V Red, 2.65V Green, 2.65V Blue 4-SMD, No Lead
Datasheet
Mfr
SunLED
Color
Red, Green, Blue (RGB)
Series
Ultra Low Current
Lens Size
2.10mm x 0.70mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
Colorless
Lens Style
Rectangle with Domed Top
Height (Max)
0.85mm
Configuration
Common Anode
Mounting Type
Surface Mount, Right Angle
Viewing Angle
130°
Current - Test
2mA
Package / Case
4-SMD, No Lead
Size / Dimension
2.50mm L x 1.00mm W
Lens Transparency
Clear
Wavelength - Peak
630nm Red, 515nm Green, 460nm Blue
Base Product Number
XZCCBDMEDGK161
Millicandela Rating
9mcd Red, 59mcd Green, 9mcd Blue
Wavelength - Dominant
621nm Red, 525nm Green, 465nm Blue
Supplier Device Package
4-SMD
Voltage - Forward (Vf) (Typ)
1.8V Red, 2.65V Green, 2.65V Blue
| Attribute | Value |
|---|---|
| Mfr | SunLED |
| Color | Red, Green, Blue (RGB) |
| Series | Ultra Low Current |
| Lens Size | 2.10mm x 0.70mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Domed Top |
| Height (Max) | 0.85mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 130° |
| Current - Test | 2mA |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 2.50mm L x 1.00mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Base Product Number | XZCCBDMEDGK161 |
| Millicandela Rating | 9mcd Red, 59mcd Green, 9mcd Blue |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Supplier Device Package | 4-SMD |
| Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.65V Green, 2.65V Blue |
