Step1: Product
SunLED XLMDKCBD59M

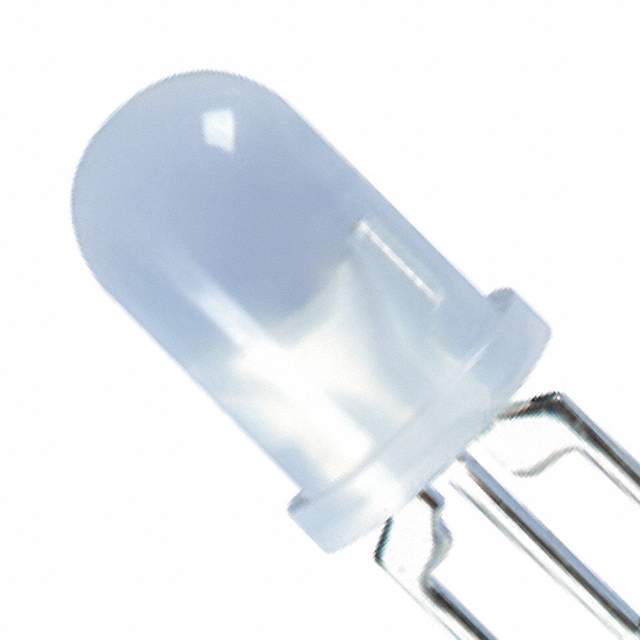

Image shown is a representation only
Manufacturer
Manufacturer No
XLMDKCBD59M
Package
Radial - 3 Leads
Packaging
Bulk
Description
LED BLUE/RED DIFF T-1 3/4 T/H
Detailed Description
Blue, Red 465nm Blue, 630nm Red LED Indication - Discrete 3.3V Blue, 1.95V Red Radial - 3 Leads
DataSheet
Mfr
SunLED
Color
Blue, Red
Lens Size
5mm, T-1 3/4
Packaging
Bulk
Lens Color
White
Lens Style
Round with Domed Top
Part Status
Active
Height (Max)
8.60mm
Configuration
Common Cathode
Mounting Type
Through Hole
Viewing Angle
60°
Current - Test
20mA Blue, 20mA Red
Package / Case
Radial - 3 Leads
Lens Transparency
Diffused
Wavelength - Peak
460nm Blue, 645nm Red
Base Product Number
XLMDKCBD59
Millicandela Rating
347mcd Blue, 198mcd Red
Wavelength - Dominant
465nm Blue, 630nm Red
Supplier Device Package
T-1 3/4
Voltage - Forward (Vf) (Typ)
3.3V Blue, 1.95V Red
| Attribute | Value |
|---|---|
| Mfr | SunLED |
| Color | Blue, Red |
| Lens Size | 5mm, T-1 3/4 |
| Packaging | Bulk |
| Lens Color | White |
| Lens Style | Round with Domed Top |
| Part Status | Active |
| Height (Max) | 8.60mm |
| Configuration | Common Cathode |
| Mounting Type | Through Hole |
| Viewing Angle | 60° |
| Current - Test | 20mA Blue, 20mA Red |
| Package / Case | Radial - 3 Leads |
| Lens Transparency | Diffused |
| Wavelength - Peak | 460nm Blue, 645nm Red |
| Base Product Number | XLMDKCBD59 |
| Millicandela Rating | 347mcd Blue, 198mcd Red |
| Wavelength - Dominant | 465nm Blue, 630nm Red |
| Supplier Device Package | T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 1.95V Red |
