Step1: Product
Sumida America Components Inc. CPFC74NP-PS02H2A20

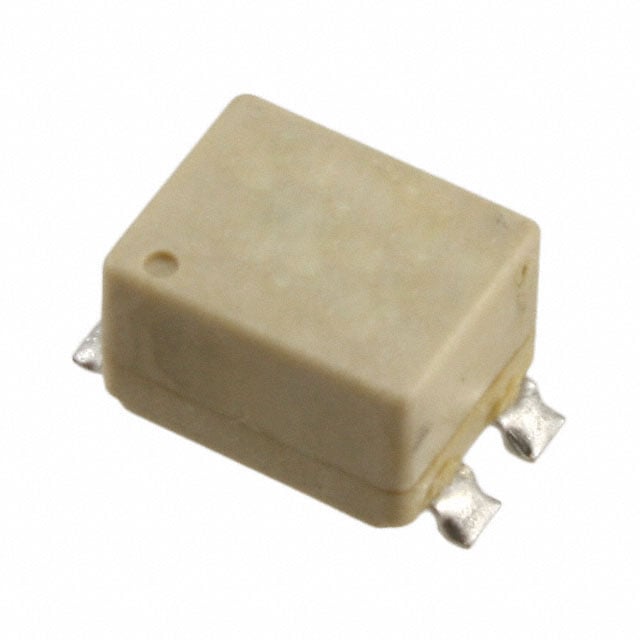

Image shown is a representation only
Manufacturer
Manufacturer No
CPFC74NP-PS02H2A20
Quantity
1147
Availability
In Stock
Package
Vertical, 4 Gull Wing
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 2A 2LN 200 OHM SMD
Detailed Description
2 Line Common Mode Choke Surface Mount 200 Ohms @ 20 MHz 2A DCR 120mOhm (Typ)
DataSheet
Series
CPFC
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Power Line
Part Status
Active
Height (Max)
0.200" (5.08mm)
Manufacturer
Sumida America Components Inc.
Mounting Type
Surface Mount
Package / Case
Vertical, 4 Gull Wing
Number of Lines
2
Size / Dimension
0.374" L x 0.224" W (9.50mm x 5.70mm)
Current Rating (Max)
2A
Impedance @ Frequency
200 Ohms @ 20 MHz
DC Resistance (DCR) (Max)
120mOhm (Typ)
| Attribute | Value |
|---|---|
| Series | CPFC |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.200" (5.08mm) |
| Manufacturer | Sumida America Components Inc. |
| Mounting Type | Surface Mount |
| Package / Case | Vertical, 4 Gull Wing |
| Number of Lines | 2 |
| Size / Dimension | 0.374" L x 0.224" W (9.50mm x 5.70mm) |
| Current Rating (Max) | 2A |
| Impedance @ Frequency | 200 Ohms @ 20 MHz |
| DC Resistance (DCR) (Max) | 120mOhm (Typ) |
