Step1: Product
Sumida America Components Inc. 55081013400

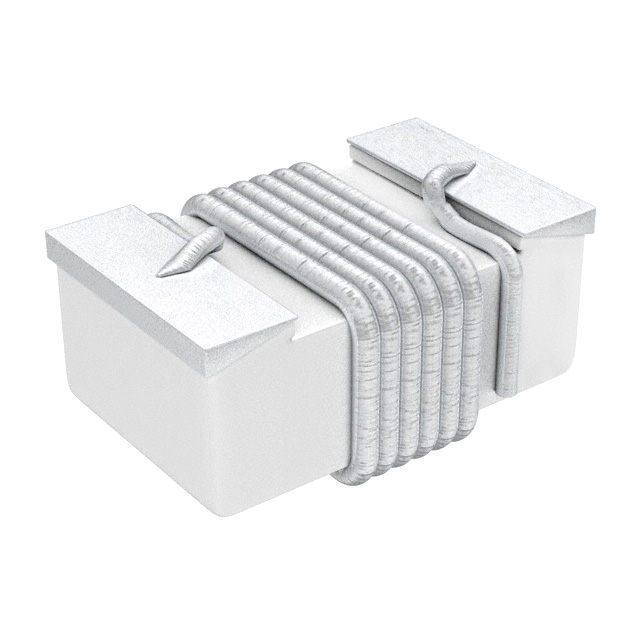

Image shown is a representation only
Manufacturer
Manufacturer No
55081013400
Package
0805 (2012 Metric)
Packaging
Cut Tape (CT)
Description
FIXED IND 100NH 350MA 260 MOHM
Detailed Description
100 nH Unshielded Drum Core, Wirewound Inductor 350 mA 260mOhm Max 0805 (2012 Metric)
DataSheet
Mfr
Sumida America Components Inc.
Type
Drum Core, Wirewound
Series
5508
Q @ Freq
40 @ 150MHz
Packaging
Cut Tape (CT)
Shielding
Unshielded
Tolerance
±5%
Inductance
100 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric)
Material - Core
Ceramic
Size / Dimension
0.087" L x 0.055" W (2.20mm x 1.40mm)
DC Resistance (DCR)
260mOhm Max
Current Rating (Amps)
350 mA
Height - Seated (Max)
0.056" (1.42mm)
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
0805 (2012 Metric)
Frequency - Self Resonant
1.31GHz
Inductance Frequency - Test
150 MHz
| Attribute | Value |
|---|---|
| Mfr | Sumida America Components Inc. |
| Type | Drum Core, Wirewound |
| Series | 5508 |
| Q @ Freq | 40 @ 150MHz |
| Packaging | Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 100 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| DC Resistance (DCR) | 260mOhm Max |
| Current Rating (Amps) | 350 mA |
| Height - Seated (Max) | 0.056" (1.42mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 0805 (2012 Metric) |
| Frequency - Self Resonant | 1.31GHz |
| Inductance Frequency - Test | 150 MHz |
