Step1: Product

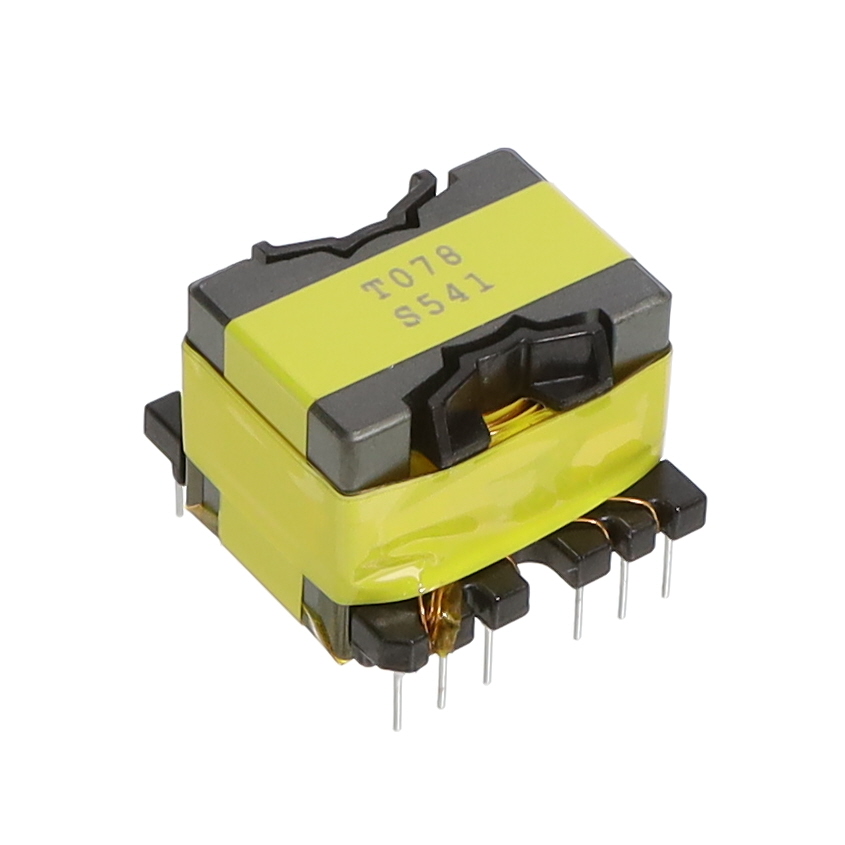

Sumida America Components Inc. 11328-T078
Image shown is a representation only
Manufacturer
Manufacturer No
11328-T078
Packaging
Bulk
Description
XFMR FLYBACK DC/DC CONV 670UH TH
Detailed Description
Flyback Converters For For DC/DC Converters SMPS Transformer 3000Vrms Isolation Through Hole
DataSheet
Type
For DC/DC Converters
Style
Wirewound
Series
PQ2620
Packaging
Bulk
Part Status
Active
Applications
Flyback Converters
Manufacturer
Sumida America Components Inc.
Mounting Type
Through Hole
Intended Chipset
LT8316
Size / Dimension
1.220" L x 1.102" W (31.00mm x 28.00mm)
Voltage - Primary
100 ~ 600V
Voltage - Auxiliary
12V @ 100mA
Voltage - Isolation
3000Vrms
Chipset Manufacturer
Analog Devices, Inc
Height - Seated (Max)
1.043" (26.50mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
670µH @ 100kHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Style | Wirewound |
| Series | PQ2620 |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Flyback Converters |
| Manufacturer | Sumida America Components Inc. |
| Mounting Type | Through Hole |
| Intended Chipset | LT8316 |
| Size / Dimension | 1.220" L x 1.102" W (31.00mm x 28.00mm) |
| Voltage - Primary | 100 ~ 600V |
| Voltage - Auxiliary | 12V @ 100mA |
| Voltage - Isolation | 3000Vrms |
| Chipset Manufacturer | Analog Devices, Inc |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 670µH @ 100kHz |
