Step1: Product
Sullins Connector Solutions SFH11-PBPC-D30-ST-BK

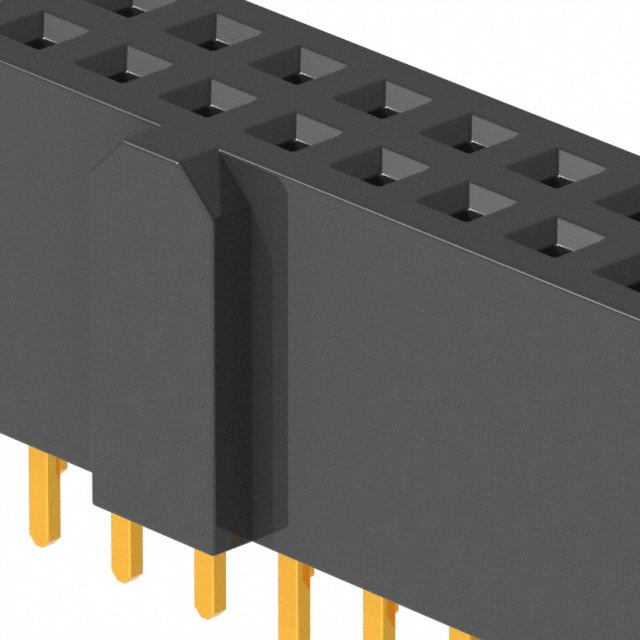

Image shown is a representation only
Manufacturer
Manufacturer No
SFH11-PBPC-D30-ST-BK
Packaging
Tray
Description
CONN HDR 60POS 0.1 GOLD PCB
Detailed Description
60 Position Header Connector 0.100" (2.54mm) Through Hole Gold
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board
Series
SFH11
Features
Polarizing Key
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Base Product Number
SFH11
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
60
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board |
| Series | SFH11 |
| Features | Polarizing Key |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Base Product Number | SFH11 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 60 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
