Step1: Product

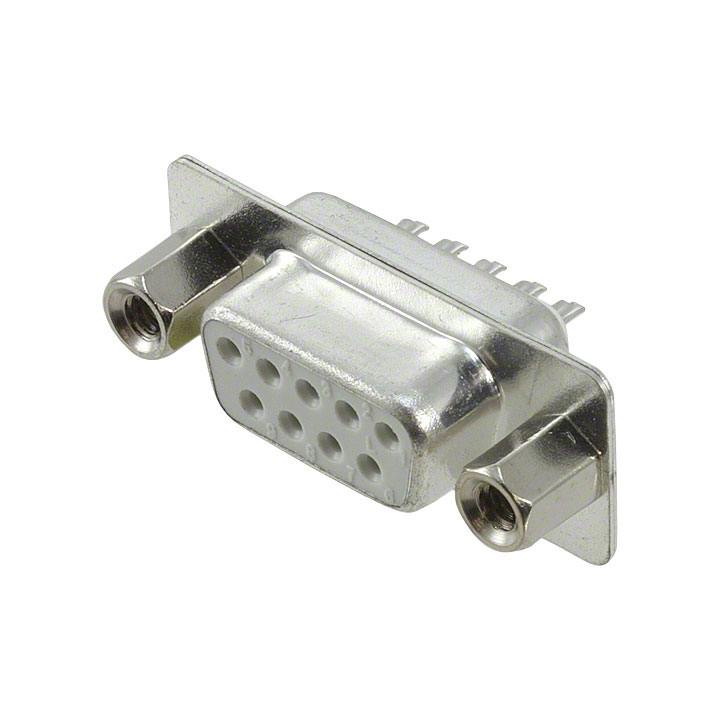

Sullins Connector Solutions SDS100-PRW2-F09-SN11-6
Image shown is a representation only
Manufacturer
Manufacturer No
SDS100-PRW2-F09-SN11-6
Packaging
Tray
Description
CONN D-SUB RCPT 9POS SOLDER CUP
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
Sullins Connector Solutions
Color
White
Series
100
Packaging
Tray
Wire Gauge
22 AWG
Part Status
Obsolete
Termination
Solder Cup
Contact Form
Stamped
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side (4-40)
Number of Rows
2
Voltage Rating
250V
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
SDS100
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Color | White |
| Series | 100 |
| Packaging | Tray |
| Wire Gauge | 22 AWG |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | SDS100 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
