Sullins Connector Solutions SBH21-NBPN-D22-ST-BK

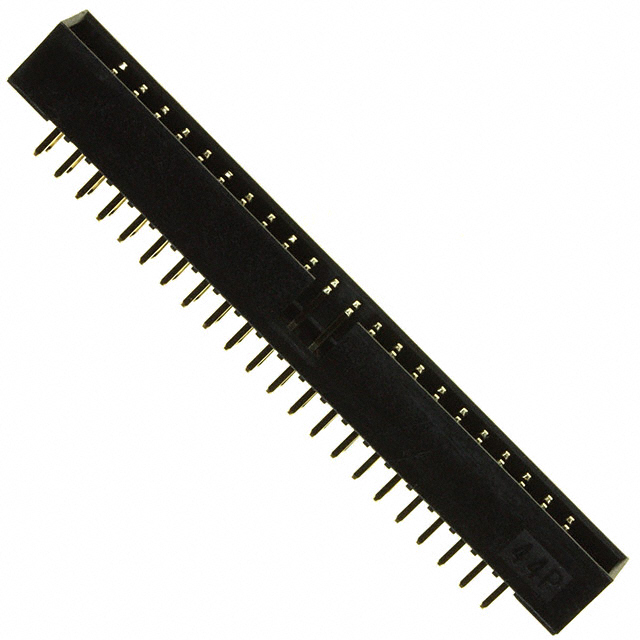

Image shown is a representation only
Manufacturer
Manufacturer No
SBH21-NBPN-D22-ST-BK
Packaging
Tray
Description
CONN HEADER VERT 44POS 2MM
Detailed Description
Connector Header Through Hole 44 position 0.079" (2.00mm)
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board or Cable
Series
SBH21
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.220" (5.60mm)
Base Product Number
SBH21
Insulation Material
Polyamide (PA), Nylon
Number of Positions
44
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Contact Length - Post
0.110" (2.79mm)
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
6mm, 7mm, 7.05mm, 10.45mm, 14.35mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board or Cable |
| Series | SBH21 |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.220" (5.60mm) |
| Base Product Number | SBH21 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 44 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.110" (2.79mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 6mm, 7mm, 7.05mm, 10.45mm, 14.35mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
