Step1: Product

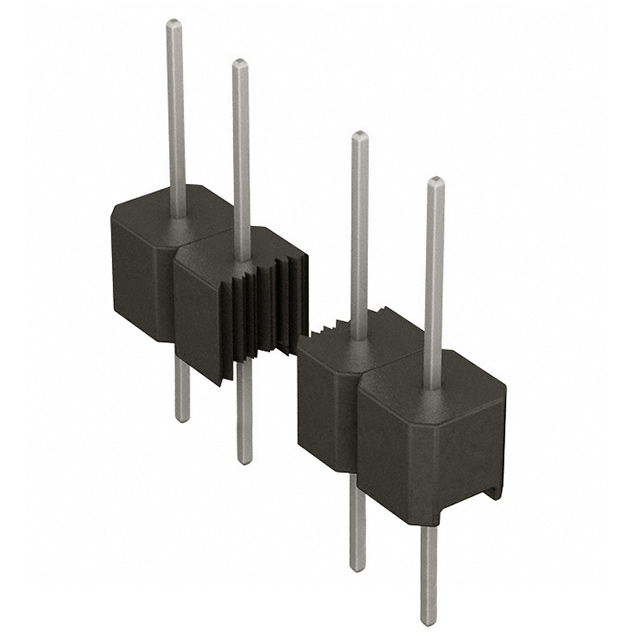

Sullins Connector Solutions PREC040SADN-RC
Image shown is a representation only
Manufacturer
Manufacturer No
PREC040SADN-RC
Packaging
Bulk
Description
CONN HEADER VERT 40POS 2.54MM
Detailed Description
Connector Header Through Hole 40 position 0.100" (2.54mm)
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board or Cable
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.098" (2.50mm)
Base Product Number
PREC040
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
40
Contact Finish - Post
Tin
Contact Length - Post
0.420" (10.67mm)
Current Rating (Amps)
3A per Contact
Operating Temperature
-40°C ~ 105°C
Overall Contact Length
0.748" (19.01mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.230" (5.84mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board or Cable |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Base Product Number | PREC040 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 40 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.420" (10.67mm) |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Overall Contact Length | 0.748" (19.01mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.230" (5.84mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
