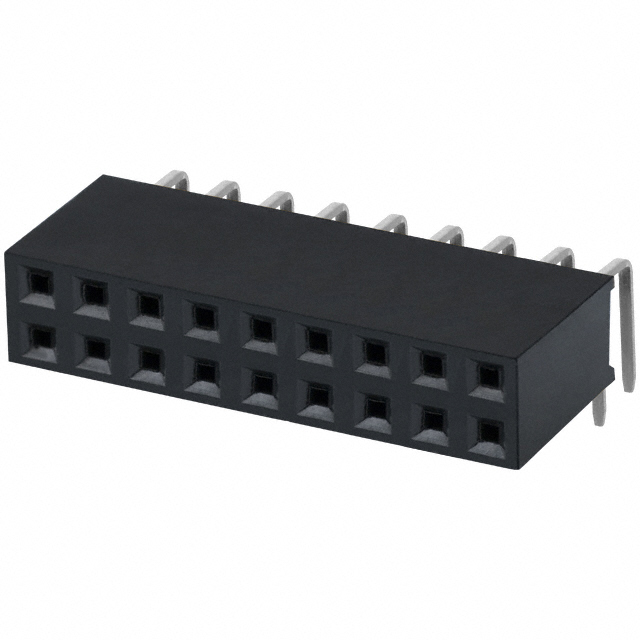

Sullins Connector Solutions PPTC092LJBN
Image shown is a representation only
Manufacturer
Manufacturer No
PPTC092LJBN
Packaging
Bulk
Description
CONN HDR 18POS 0.1 TIN PCB R/A
Detailed Description
18 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board
Packaging
Bulk
Part Status
Obsolete
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.200" (5.08mm)
Base Product Number
PPTC092
Insulation Material
Polyester
Number of Positions
18
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.124" (3.15mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board |
| Packaging | Bulk |
| Part Status | Obsolete |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.200" (5.08mm) |
| Base Product Number | PPTC092 |
| Insulation Material | Polyester |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.124" (3.15mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
