Step1: Product

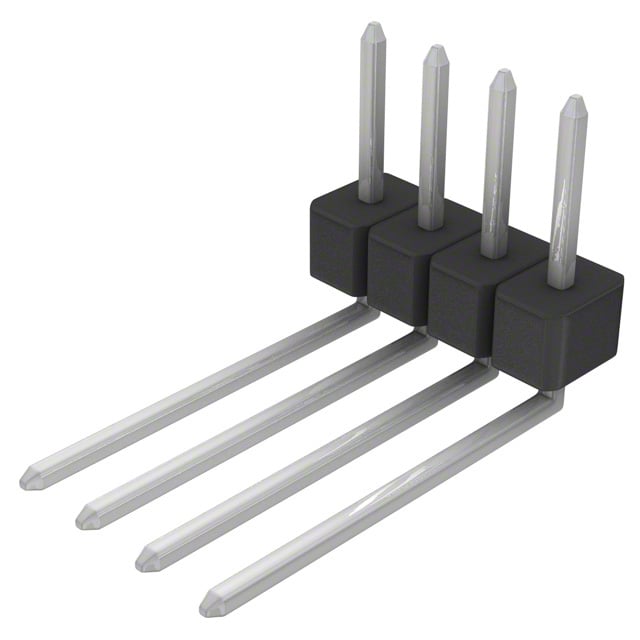

Sullins Connector Solutions PEC04SBEN
Image shown is a representation only
Manufacturer
Manufacturer No
PEC04SBEN
Packaging
Bulk
Description
CONN HEADER R/A 4POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board or Cable
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.140" (3.56mm)
Base Product Number
PEC04
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.500" (12.70mm)
Current Rating (Amps)
3A
Operating Temperature
-65°C ~ 125°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.230" (5.84mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board or Cable |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.140" (3.56mm) |
| Base Product Number | PEC04 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.500" (12.70mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.230" (5.84mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
