Step1: Product

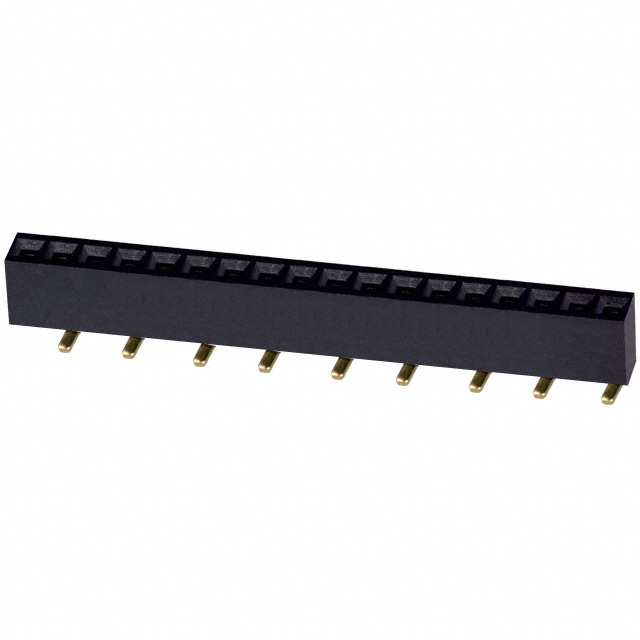

Sullins Connector Solutions NPPC181KFXC-RC
Image shown is a representation only
Manufacturer
Manufacturer No
NPPC181KFXC-RC
Packaging
Tube
Description
CONN HDR 18POS 0.1 GOLD SMD
Detailed Description
18 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header, Top or Bottom Entry
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.280" (7.10mm)
Base Product Number
NPPC181
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
18
Contact Finish - Post
Gold
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header, Top or Bottom Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.280" (7.10mm) |
| Base Product Number | NPPC181 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 18 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
