Step1: Product

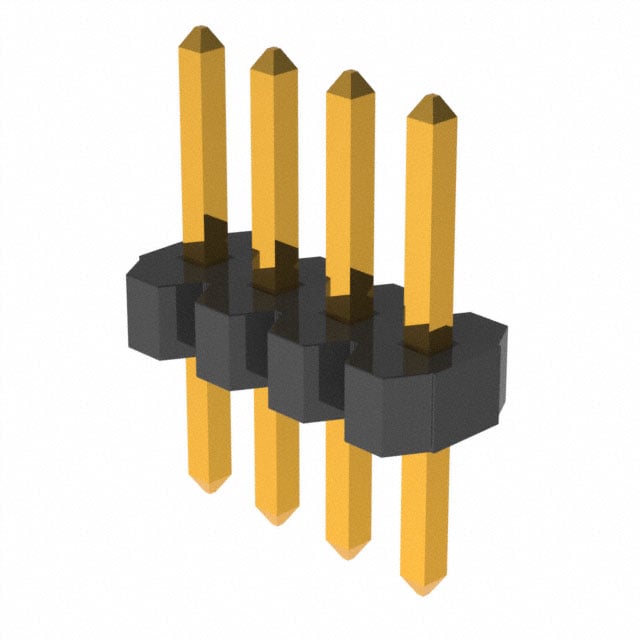

Sullins Connector Solutions GRPB041VWVN-RC
Image shown is a representation only
Manufacturer
Manufacturer No
GRPB041VWVN-RC
Packaging
Bulk
Description
CONN HEADER VERT 4POS 1.27MM
Detailed Description
Connector Header Through Hole 4 position 0.050" (1.27mm)
DataSheet
Mfr
Sullins Connector Solutions
Style
Board to Board or Cable
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Contact Material
Brass
Insulation Height
0.039" (1.00mm)
Base Product Number
GRPB041
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
4
Contact Finish - Post
Gold
Contact Length - Post
0.091" (2.30mm)
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Overall Contact Length
0.248" (6.30mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.118" (3.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Sullins Connector Solutions |
| Style | Board to Board or Cable |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Brass |
| Insulation Height | 0.039" (1.00mm) |
| Base Product Number | GRPB041 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 4 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.091" (2.30mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Overall Contact Length | 0.248" (6.30mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
