Step1: Product

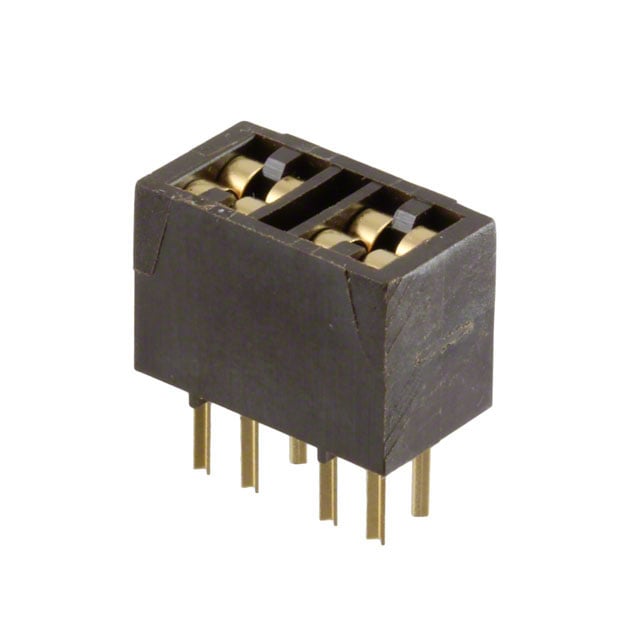

Sullins Connector Solutions FMC05DRTN-S1682
Image shown is a representation only
Manufacturer
Manufacturer No
FMC05DRTN-S1682
Packaging
Tray
Description
CONN TRANSIST TO-220/TO-247 5POS
Detailed Description
5 (Rectangular) Pos Transistor, TO-220 and TO-247 Socket Gold Through Hole
DataSheet
Type
Transistor, TO-220 and TO-247
Packaging
Tray
Part Status
Active
Termination
Solder
Manufacturer
Sullins Connector Solutions
Mounting Type
Through Hole
Housing Material
Polyphenylene Sulfide (PPS)
Contact Resistance
30mOhm
Base Product Number
FMC05
Contact Finish - Post
Gold
Current Rating (Amps)
3 A
Operating Temperature
-65°C ~ 200°C
Contact Finish - Mating
Gold
Contact Material - Post
Nickel Boron
Termination Post Length
0.200" (5.08mm)
Contact Material - Mating
Nickel Boron
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Number of Positions or Pins (Grid)
5 (Rectangular)
| Attribute | Value |
|---|---|
| Type | Transistor, TO-220 and TO-247 |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Sullins Connector Solutions |
| Mounting Type | Through Hole |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Contact Resistance | 30mOhm |
| Base Product Number | FMC05 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 3 A |
| Operating Temperature | -65°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Nickel Boron |
| Termination Post Length | 0.200" (5.08mm) |
| Contact Material - Mating | Nickel Boron |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Number of Positions or Pins (Grid) | 5 (Rectangular) |
