Step1: Product
STMicroelectronics VNB20N0713TR

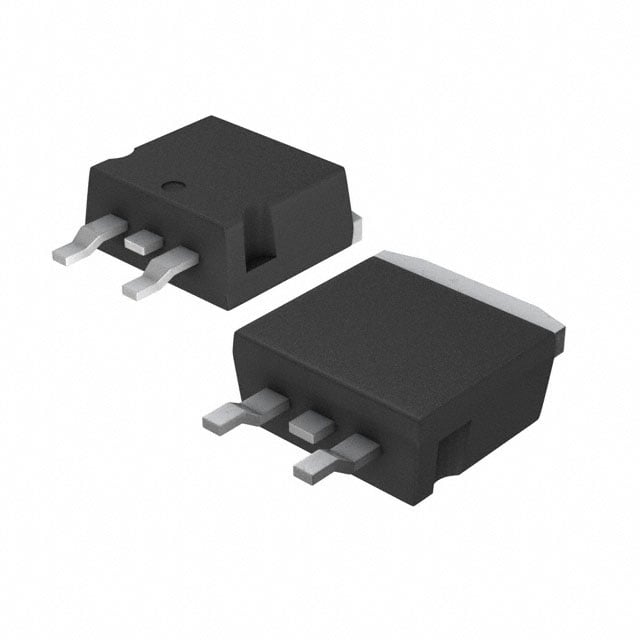

Image shown is a representation only
Manufacturer
Manufacturer No
VNB20N0713TR
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Tape & Reel (TR)
Description
IC PWR DRIVER N-CHAN 1:1 D2PAK
Detailed Description
Power Switch/Driver 1:1 N-Channel 14A D2PAK
DataSheet
Mfr
STMicroelectronics
Series
OMNIFET™, VIPower™
Features
Status Flag
Interface
On/Off
Packaging
Tape & Reel (TR)
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Obsolete
Switch Type
General Purpose
Rds On (Typ)
50mOhm (Max)
Mounting Type
Surface Mount
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Voltage - Load
55V (Max)
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage
Number of Outputs
1
Base Product Number
VNB20
Output Configuration
Low Side
Ratio - Input:Output
1:1
Current - Output (Max)
14A
Supplier Device Package
D2PAK
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Series | OMNIFET™, VIPower™ |
| Features | Status Flag |
| Interface | On/Off |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Obsolete |
| Switch Type | General Purpose |
| Rds On (Typ) | 50mOhm (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Voltage - Load | 55V (Max) |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Number of Outputs | 1 |
| Base Product Number | VNB20 |
| Output Configuration | Low Side |
| Ratio - Input:Output | 1:1 |
| Current - Output (Max) | 14A |
| Supplier Device Package | D2PAK |
| Voltage - Supply (Vcc/Vdd) | Not Required |
