Step1: Product
STMicroelectronics STPSC12065G2Y-TR

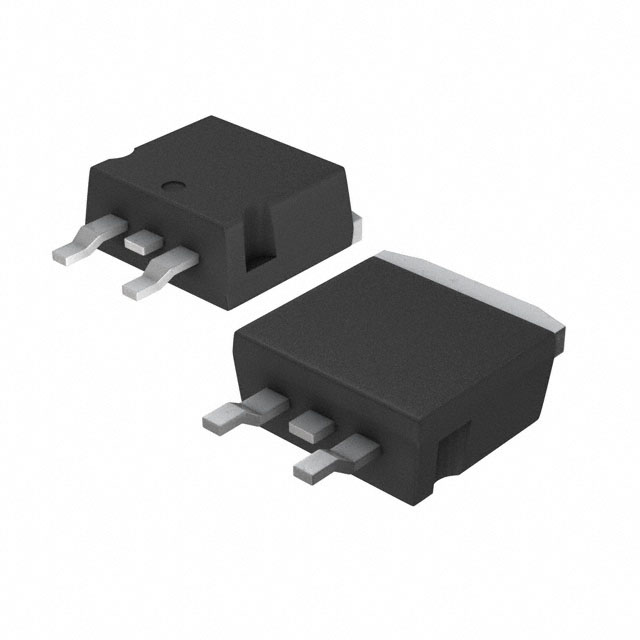

Image shown is a representation only
Manufacturer
Manufacturer No
STPSC12065G2Y-TR
Quantity
30
Availability
In Stock
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIODE SIL CARB 650V 12A D2PAK HV
Detailed Description
Diode 650 V 12A Surface Mount D2PAK HV
DataSheet
Mfr
STMicroelectronics
Grade
Automotive
Speed
Zero Recovery Time > 500mA (Io)
Series
ECOPACK®2
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Base Product Number
STPSC12065
Capacitance @ Vr, F
750pF @ 0V, 1MHz
Supplier Device Package
D2PAK HV
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
150 µA @ 650 V
Voltage - DC Reverse (Vr) (Max)
650 V
Current - Average Rectified (Io)
12A
Operating Temperature - Junction
-40°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.45 V @ 12 A
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Grade | Automotive |
| Speed | Zero Recovery Time > 500mA (Io) |
| Series | ECOPACK®2 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | STPSC12065 |
| Capacitance @ Vr, F | 750pF @ 0V, 1MHz |
| Supplier Device Package | D2PAK HV |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 150 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 12A |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 12 A |
