Step1: Product

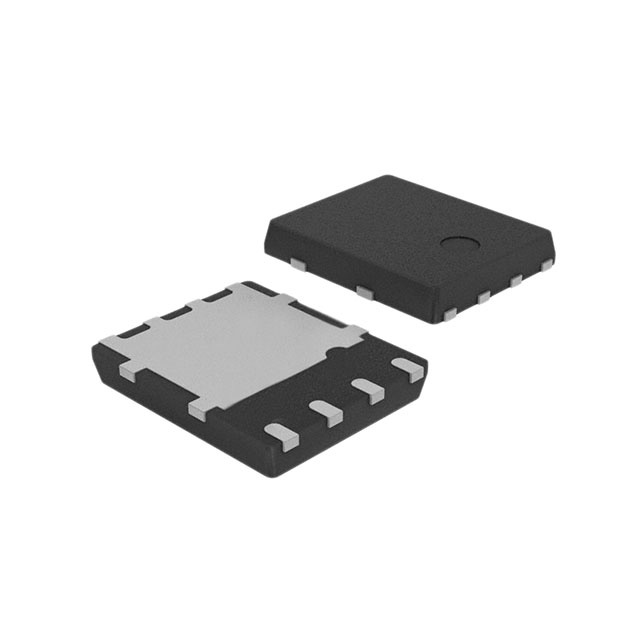

STMicroelectronics STL50N6F7
Image shown is a representation only
Manufacturer
Manufacturer No
STL50N6F7
Quantity
10
Availability
In Stock
Package
8-PowerVDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET N-CH 60V 60A POWERFLAT
Detailed Description
N-Channel 60 V 60A (Tc) 71W (Tc) Surface Mount PowerFlat™ (5x6)
Datasheet
Mfr
STMicroelectronics
Series
STripFET™ F7
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Mounting Type
Surface Mount
Package / Case
8-PowerVDFN
Vgs(th) (Max) @ Id
4V @ 250µA
Base Product Number
STL50
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
11mOhm @ 7.5A, 10V
Power Dissipation (Max)
71W (Tc)
Supplier Device Package
PowerFlat™ (5x6)
Gate Charge (Qg) (Max) @ Vgs
17 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
1035 pF @ 30 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
60A (Tc)
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Series | STripFET™ F7 |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Base Product Number | STL50 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 7.5A, 10V |
| Power Dissipation (Max) | 71W (Tc) |
| Supplier Device Package | PowerFlat™ (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1035 pF @ 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
