STMicroelectronics STL117N4LF7AG

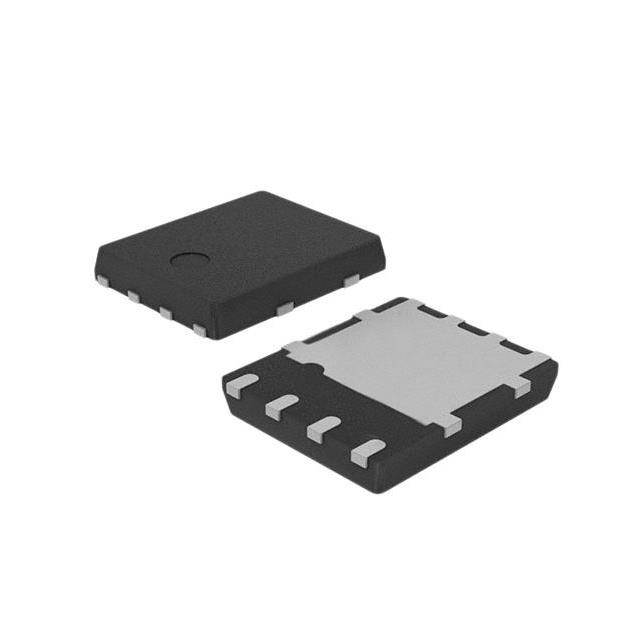

Image shown is a representation only
Manufacturer
Manufacturer No
STL117N4LF7AG
Quantity
10
Availability
In Stock
Package
8-PowerVDFN
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 40V 119A POWERFLAT
Detailed Description
N-Channel 40 V 119A (Tc) 94W (Tc) Surface Mount PowerFlat™ (5x6)
DataSheet
Mfr
STMicroelectronics
Grade
Automotive
Series
STripFET™ F7
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-PowerVDFN
Vgs(th) (Max) @ Id
2.5V @ 250µA
Base Product Number
STL117
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
3.5mOhm @ 13A, 10V
Power Dissipation (Max)
94W (Tc)
Supplier Device Package
PowerFlat™ (5x6)
Gate Charge (Qg) (Max) @ Vgs
27.6 nC @ 10 V
Drain to Source Voltage (Vdss)
40 V
Input Capacitance (Ciss) (Max) @ Vds
1780 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
119A (Tc)
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Grade | Automotive |
| Series | STripFET™ F7 |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-PowerVDFN |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Base Product Number | STL117 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 13A, 10V |
| Power Dissipation (Max) | 94W (Tc) |
| Supplier Device Package | PowerFlat™ (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 27.6 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1780 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 119A (Tc) |
