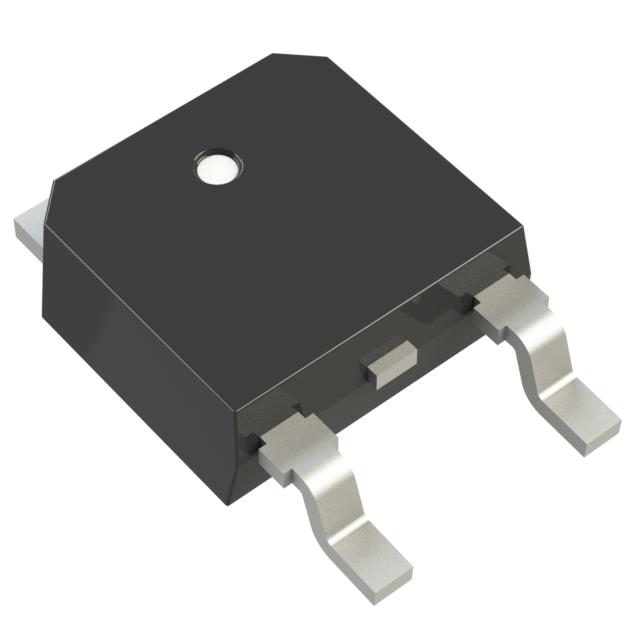

STMicroelectronics STGD4H60DF
Image shown is a representation only
Manufacturer
Manufacturer No
STGD4H60DF
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IGBT TRENCH FS 600V 8A DPAK
Detailed Description
IGBT Trench Field Stop 600 V 8 A 75 W Surface Mount DPAK (TO-252) type C2
DataSheet
Series
H
IGBT Type
Trench Field Stop
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Standard
Gate Charge
35 nC
Part Status
Active
Power - Max
75 W
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Test Condition
400V, 3A, 47Ohm, 15V
Switching Energy
68µJ (on), 45µJ (off)
Td (on/off) @ 25°C
35ns/121ns
Operating Temperature
-55°C ~ 175°C (TJ)
Supplier Device Package
DPAK (TO-252) type C2
Vce(on) (Max) @ Vge, Ic
1.95V @ 15V, 3A
Reverse Recovery Time (trr)
73 ns
Current - Collector (Ic) (Max)
8 A
Current - Collector Pulsed (Icm)
16 A
Voltage - Collector Emitter Breakdown (Max)
600 V
| Attribute | Value |
|---|---|
| Series | H |
| IGBT Type | Trench Field Stop |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Standard |
| Gate Charge | 35 nC |
| Part Status | Active |
| Power - Max | 75 W |
| Manufacturer | STMicroelectronics |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Test Condition | 400V, 3A, 47Ohm, 15V |
| Switching Energy | 68µJ (on), 45µJ (off) |
| Td (on/off) @ 25°C | 35ns/121ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | DPAK (TO-252) type C2 |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 3A |
| Reverse Recovery Time (trr) | 73 ns |
| Current - Collector (Ic) (Max) | 8 A |
| Current - Collector Pulsed (Icm) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
