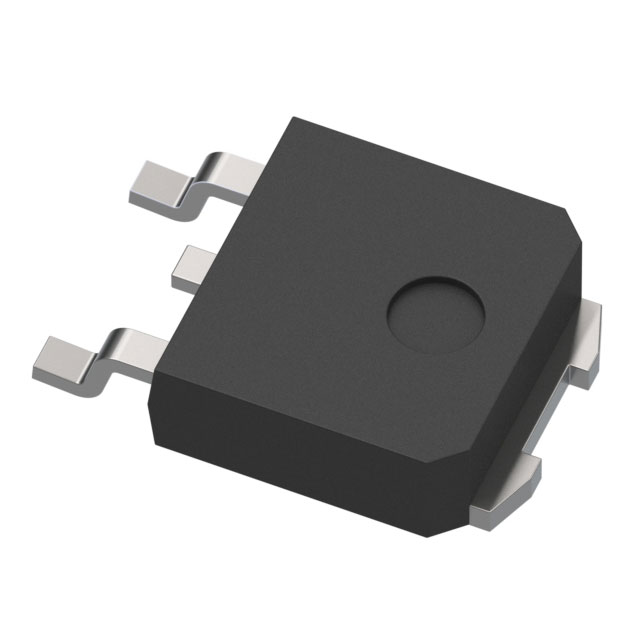

STMicroelectronics STD6N60DM2
Image shown is a representation only
Manufacturer
Manufacturer No
STD6N60DM2
Quantity
9
Availability
In Stock
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 600V 5A DPAK
Detailed Description
N-Channel 600 V 5A (Tc) 60W (Tc) Surface Mount TO-252 (DPAK)
DataSheet
Mfr
STMicroelectronics
Series
MDmesh™ DM2
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±25V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Vgs(th) (Max) @ Id
4.75V @ 250µA
Base Product Number
STD6N60
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
1.1Ohm @ 2.5A, 10V
Power Dissipation (Max)
60W (Tc)
Supplier Device Package
TO-252 (DPAK)
Gate Charge (Qg) (Max) @ Vgs
6.2 nC @ 10 V
Drain to Source Voltage (Vdss)
600 V
Input Capacitance (Ciss) (Max) @ Vds
274 pF @ 100 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
5A (Tc)
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Series | MDmesh™ DM2 |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA |
| Base Product Number | STD6N60 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 2.5A, 10V |
| Power Dissipation (Max) | 60W (Tc) |
| Supplier Device Package | TO-252 (DPAK) |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 600 V |
| Input Capacitance (Ciss) (Max) @ Vds | 274 pF @ 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
