Step1: Product
STMicroelectronics STA8090GA

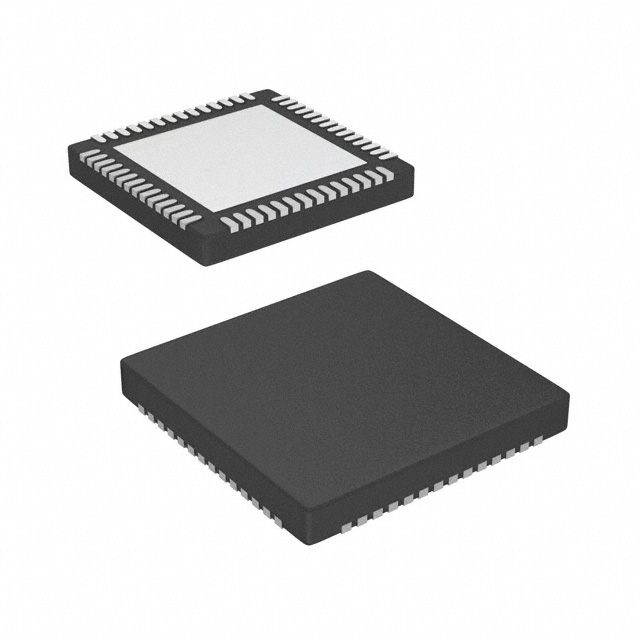

Image shown is a representation only
Manufacturer
Manufacturer No
STA8090GA
Package
56-VFQFN Exposed Pad
Packaging
Tray
Description
AUTOMOTIVE GRADE GPS/GALILEO/GLO
Detailed Description
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 4.092MHz ~ 1.561GHz, 8.57MHz ~ 1.575GHz, 10.23MHz ~ 1.601GHz -162dBm 12Mbps PCB, Surface Mount 56-VFQFPN (7x7)
DataSheet
Grade
Automotive
Frequency
4.092MHz ~ 1.561GHz, 8.57MHz ~ 1.575GHz, 10.23MHz ~ 1.601GHz
Packaging
Tray
Memory Size
256kB SRAM, 512kB ROM
Part Status
Active
Sensitivity
-162dBm
Applications
GPS Receiver
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount
Qualification
AEC-Q100
Data Interface
I2C, SPI, UART, USB
Package / Case
56-VFQFN Exposed Pad
Data Rate (Max)
12Mbps
Voltage - Supply
1.08V ~ 1.26V
Antenna Connector
PCB, Surface Mount
Base Product Number
STA8090
Operating Temperature
-40°C ~ 85°C (TA)
Modulation or Protocol
BeiDou, Galileo, GLONASS, GNSS, GPS
Supplier Device Package
56-VFQFPN (7x7)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Frequency | 4.092MHz ~ 1.561GHz, 8.57MHz ~ 1.575GHz, 10.23MHz ~ 1.601GHz |
| Packaging | Tray |
| Memory Size | 256kB SRAM, 512kB ROM |
| Part Status | Active |
| Sensitivity | -162dBm |
| Applications | GPS Receiver |
| Manufacturer | STMicroelectronics |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Data Interface | I2C, SPI, UART, USB |
| Package / Case | 56-VFQFN Exposed Pad |
| Data Rate (Max) | 12Mbps |
| Voltage - Supply | 1.08V ~ 1.26V |
| Antenna Connector | PCB, Surface Mount |
| Base Product Number | STA8090 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Modulation or Protocol | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Supplier Device Package | 56-VFQFPN (7x7) |
