Step1: Product
STMicroelectronics ST3DV520EQTR

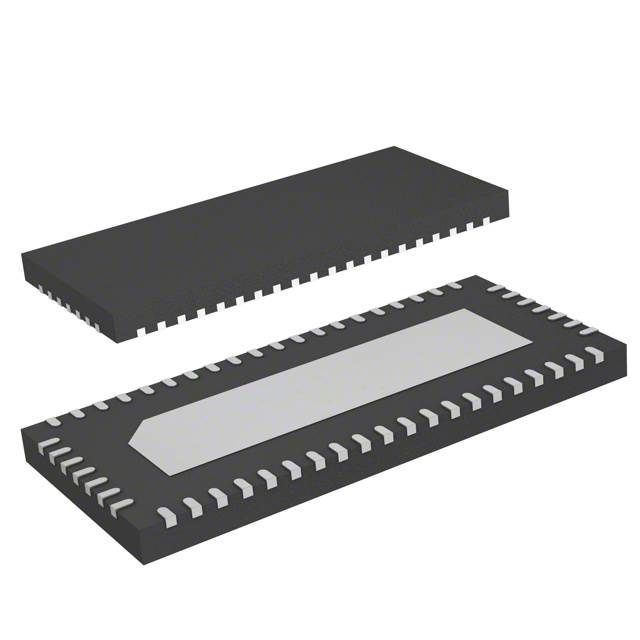

Image shown is a representation only
Manufacturer
Manufacturer No
ST3DV520EQTR
Package
56-WFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC MUX/DEMUX 4CH LVDS 56-QFN
Detailed Description
Audio, Video Switch IC 6 Channel 56-QFN (11x5)
Datasheet
Features
DDC, LVDS
Packaging
Tape & Reel (TR)
Applications
Audio, Video
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount
-3db Bandwidth
600MHz
Package / Case
56-WFQFN Exposed Pad
Switch Circuit
SPDT
Number of Channels
6
Base Product Number
ST3DV
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
56-QFN (11x5)
On-State Resistance (Max)
6.5Ohm
Voltage - Supply, Single (V+)
3V ~ 3.6V
Multiplexer/Demultiplexer Circuit
2:1
| Attribute | Value |
|---|---|
| Features | DDC, LVDS |
| Packaging | Tape & Reel (TR) |
| Applications | Audio, Video |
| Manufacturer | STMicroelectronics |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 600MHz |
| Package / Case | 56-WFQFN Exposed Pad |
| Switch Circuit | SPDT |
| Number of Channels | 6 |
| Base Product Number | ST3DV |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 56-QFN (11x5) |
| On-State Resistance (Max) | 6.5Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Multiplexer/Demultiplexer Circuit | 2:1 |
