Step1: Product

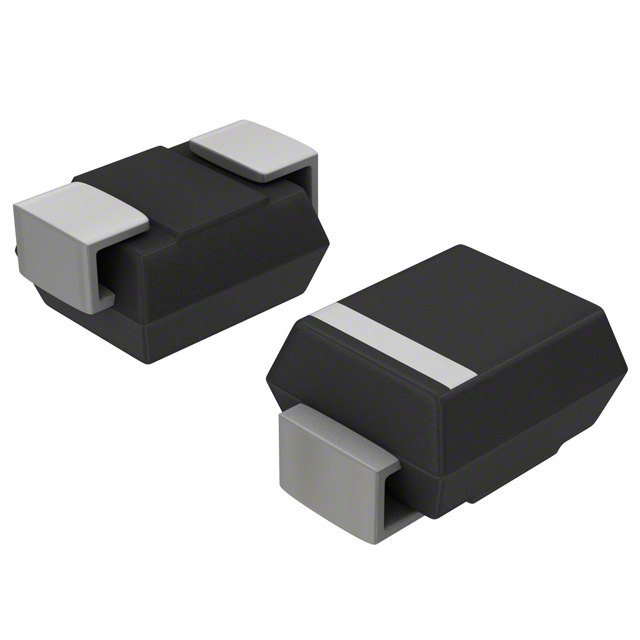

STMicroelectronics SMAJ6.5CA-TR
Image shown is a representation only
Manufacturer
Manufacturer No
SMAJ6.5CA-TR
Quantity
4605
Availability
In Stock
Package
DO-214AC, SMA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 6.5VWM 14.5V DO214AC
Detailed Description
14.5V Clamp 160A (8/20µs) Ipp Tvs Diode Surface Mount DO-214AC (SMA)
DataSheet
Mfr
STMicroelectronics
Type
Zener
Series
SMAJ, TRANSIL™
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
DO-214AC, SMA
Power - Peak Pulse
400W
Base Product Number
SMAJ6.5
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Supplier Device Package
DO-214AC (SMA)
Voltage - Breakdown (Min)
7.2V
Voltage - Clamping (Max) @ Ipp
14.5V
Voltage - Reverse Standoff (Typ)
6.5V
Current - Peak Pulse (10/1000µs)
160A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Type | Zener |
| Series | SMAJ, TRANSIL™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 400W |
| Base Product Number | SMAJ6.5 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Supplier Device Package | DO-214AC (SMA) |
| Voltage - Breakdown (Min) | 7.2V |
| Voltage - Clamping (Max) @ Ipp | 14.5V |
| Voltage - Reverse Standoff (Typ) | 6.5V |
| Current - Peak Pulse (10/1000µs) | 160A (8/20µs) |
