STMicroelectronics ESDZV18-1BF4TK

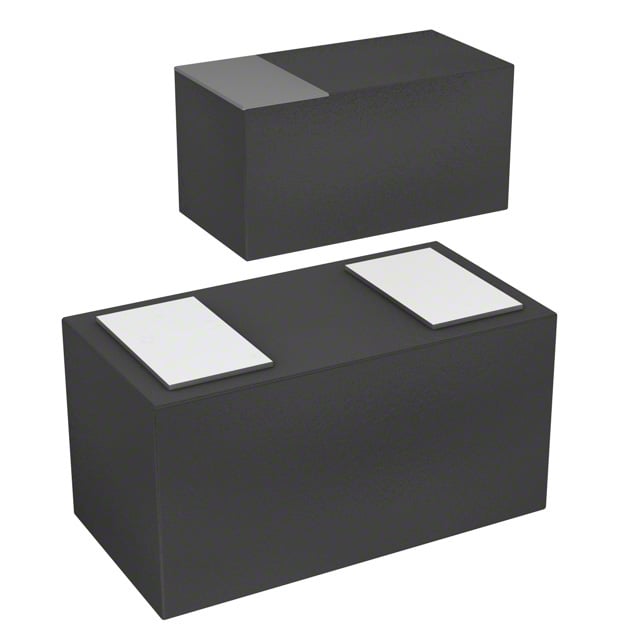

Image shown is a representation only
Manufacturer
Manufacturer No
ESDZV18-1BF4TK
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR)
Description
TVS DIODE 24VWM 21.5VC ST0201
Detailed Description
21.5V (Typ) Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount ST0201
DataSheet
Mfr
STMicroelectronics
Type
Zener
Series
ESDZ
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
140W
Base Product Number
ESDZV18
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
3pF @ 1MHz
Supplier Device Package
ST0201
Voltage - Breakdown (Min)
18V
Voltage - Clamping (Max) @ Ipp
21.5V (Typ)
Voltage - Reverse Standoff (Typ)
24V (Max)
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Type | Zener |
| Series | ESDZ |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | 140W |
| Base Product Number | ESDZV18 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Supplier Device Package | ST0201 |
| Voltage - Breakdown (Min) | 18V |
| Voltage - Clamping (Max) @ Ipp | 21.5V (Typ) |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
