Step1: Product
STMicroelectronics EMIF06-1005MX12Y

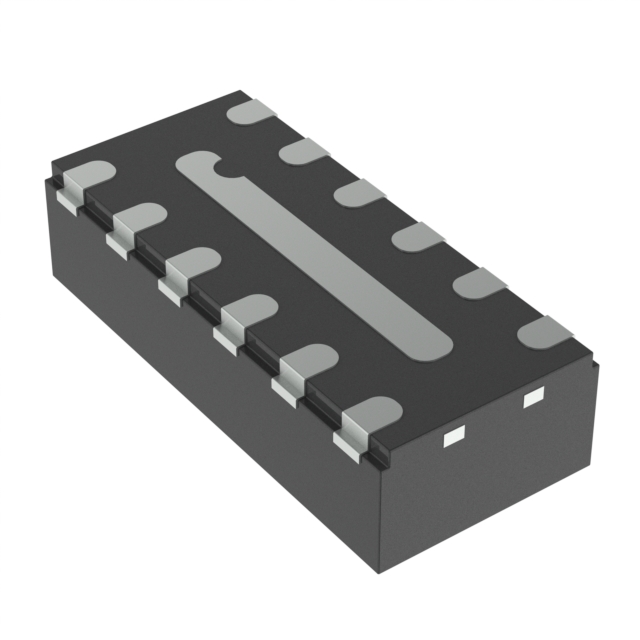

Image shown is a representation only
Manufacturer
Manufacturer No
EMIF06-1005MX12Y
Quantity
2416
Availability
In Stock
Package
12-WFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FILTR RC(PI) 100OHM/45PF ESD SMD
Detailed Description
RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100Ohm, C = 45pF 12-WFDFN Exposed Pad
DataSheet
Type
Low Pass
Height
0.032" (0.80mm)
Series
EMIF
Values
R = 100Ohm, C = 45pF
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
RC (Pi)
Part Status
Active
Applications
Data Lines for Mobile Devices
Filter Order
2nd
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount, Wettable Flank
ESD Protection
Yes
Package / Case
12-WFDFN Exposed Pad
Size / Dimension
0.118" L x 0.053" W (3.00mm x 1.35mm)
Attenuation Value
-34dB @ 900MHz ~ 1.8GHz
Number of Channels
6
Base Product Number
EMIF06
Operating Temperature
-55°C ~ 150°C
Resistance - Channel (Ohms)
100
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.032" (0.80mm) |
| Series | EMIF |
| Values | R = 100Ohm, C = 45pF |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | RC (Pi) |
| Part Status | Active |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 2nd |
| Manufacturer | STMicroelectronics |
| Mounting Type | Surface Mount, Wettable Flank |
| ESD Protection | Yes |
| Package / Case | 12-WFDFN Exposed Pad |
| Size / Dimension | 0.118" L x 0.053" W (3.00mm x 1.35mm) |
| Attenuation Value | -34dB @ 900MHz ~ 1.8GHz |
| Number of Channels | 6 |
| Base Product Number | EMIF06 |
| Operating Temperature | -55°C ~ 150°C |
| Resistance - Channel (Ohms) | 100 |
