Step1: Product

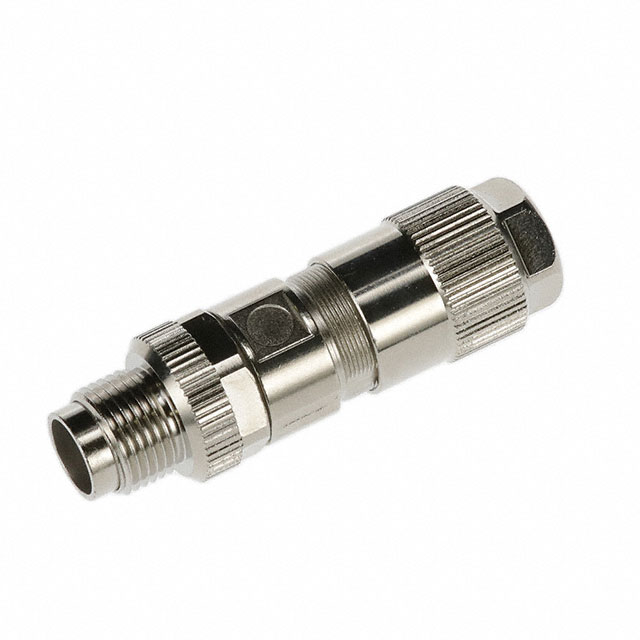

Stewart Connector SS-12400-001
Image shown is a representation only
Manufacturer
Manufacturer No
SS-12400-001
Packaging
Bulk
Description
CONN RCPT MALE 8POS GOLD IDC
Detailed Description
8 Position Circular Connector Receptacle, Male Pins IDC
DataSheet
Mfr
Stewart Connector
Color
Silver
Features
Backshell
Packaging
Bulk
Shielding
Shielded
Orientation
X
Part Status
Active
Termination
IDC
Applications
Communication Systems, Industrial
Cable Opening
0.268" ~ 0.354" (6.80mm ~ 9.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Copper Zinc Alloy
Voltage Rating
48V
Insert Material
Thermoplastic
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
SS-12400
Number of Positions
8
Shell Size - Insert
M12-8
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-40°C ~ 90°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Copper Zinc
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Stewart Connector |
| Color | Silver |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | X |
| Part Status | Active |
| Termination | IDC |
| Applications | Communication Systems, Industrial |
| Cable Opening | 0.268" ~ 0.354" (6.80mm ~ 9.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Copper Zinc Alloy |
| Voltage Rating | 48V |
| Insert Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | SS-12400 |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -40°C ~ 90°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Copper Zinc |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
