Step1: Product
Stanley Electric Co FR1113F-TR

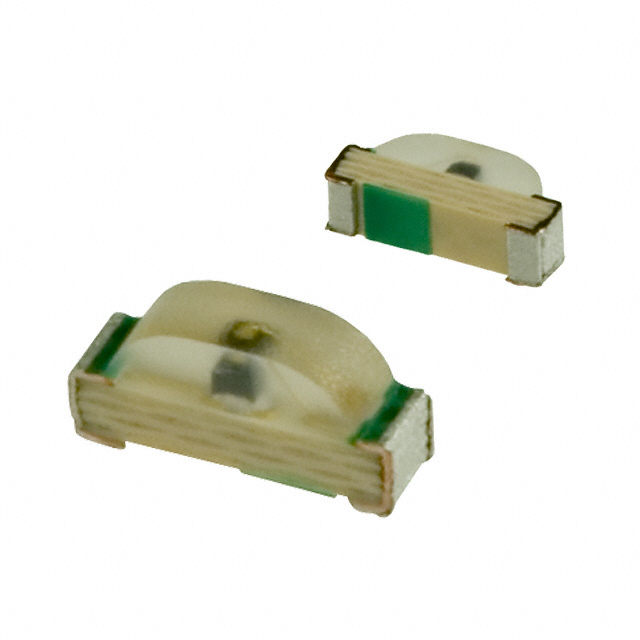

Image shown is a representation only
Manufacturer
Manufacturer No
FR1113F-TR
Package
2-SMD, No Lead
Packaging
Tape & Reel (TR)
Description
LED RED DIFFUSED SMD R/A
Detailed Description
Red 626nm LED Indication - Discrete 1.9V 2-SMD, No Lead
DataSheet
Mfr
Stanley Electric Co
Color
Red
Series
1113F
Lens Size
1.70mm x 0.60mm
Packaging
Tape & Reel (TR)
Lens Color
White
Lens Style
Rectangle with Domed Top
Part Status
Obsolete
Height (Max)
0.60mm
Configuration
Standard
Mounting Type
Surface Mount, Right Angle
Viewing Angle
134°, 150°
Current - Test
20mA
Package / Case
2-SMD, No Lead
Size / Dimension
2.10mm L x 1.00mm W
Lens Transparency
Diffused
Wavelength - Peak
635nm
Millicandela Rating
50mcd
Wavelength - Dominant
626nm
Voltage - Forward (Vf) (Typ)
1.9V
| Attribute | Value |
|---|---|
| Mfr | Stanley Electric Co |
| Color | Red |
| Series | 1113F |
| Lens Size | 1.70mm x 0.60mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | White |
| Lens Style | Rectangle with Domed Top |
| Part Status | Obsolete |
| Height (Max) | 0.60mm |
| Configuration | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 134°, 150° |
| Current - Test | 20mA |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 2.10mm L x 1.00mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 635nm |
| Millicandela Rating | 50mcd |
| Wavelength - Dominant | 626nm |
| Voltage - Forward (Vf) (Typ) | 1.9V |
