Step1: Product
Sprague-Goodman GDT20026

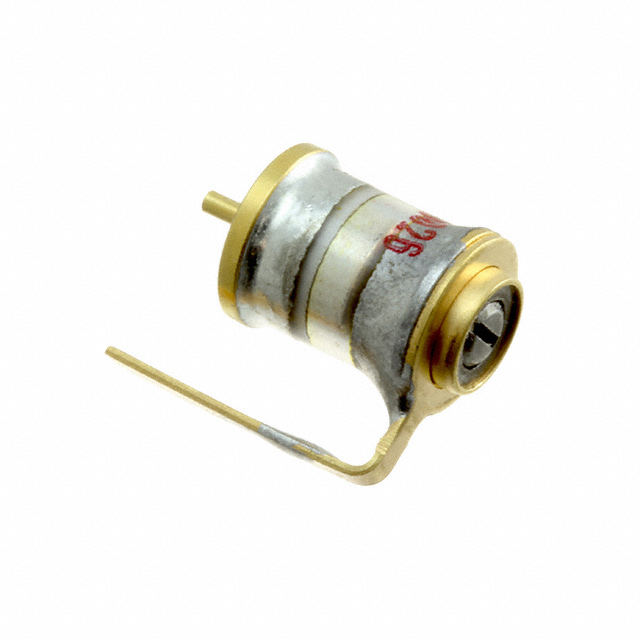

Image shown is a representation only
Manufacturer
Manufacturer No
GDT20026
Packaging
Bulk
Description
CAP TRIMMER 1.5-20PF 250V TH
Detailed Description
1.5 ~ 20pF Trimmer Capacitor 250 V Top Through Hole
DataSheet
Series
PISTONCAP®
Features
Sealed
Q @ Freq
800 @ 20MHz
Packaging
Bulk
Part Status
Obsolete
Manufacturer
Sprague-Goodman
Mounting Type
Through Hole
Adjustment Type
Top
Voltage - Rated
250 V
Size / Dimension
0.311" Dia (7.90mm)
Capacitance Range
1.5 ~ 20pF
Dielectric Material
Glass
Height - Seated (Max)
0.433" (11.00mm)
Operating Temperature
-55°C ~ 125°C
| Attribute | Value |
|---|---|
| Series | PISTONCAP® |
| Features | Sealed |
| Q @ Freq | 800 @ 20MHz |
| Packaging | Bulk |
| Part Status | Obsolete |
| Manufacturer | Sprague-Goodman |
| Mounting Type | Through Hole |
| Adjustment Type | Top |
| Voltage - Rated | 250 V |
| Size / Dimension | 0.311" Dia (7.90mm) |
| Capacitance Range | 1.5 ~ 20pF |
| Dielectric Material | Glass |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Operating Temperature | -55°C ~ 125°C |
