Step1: Product
SPI Connects MS3102A16S-8SX

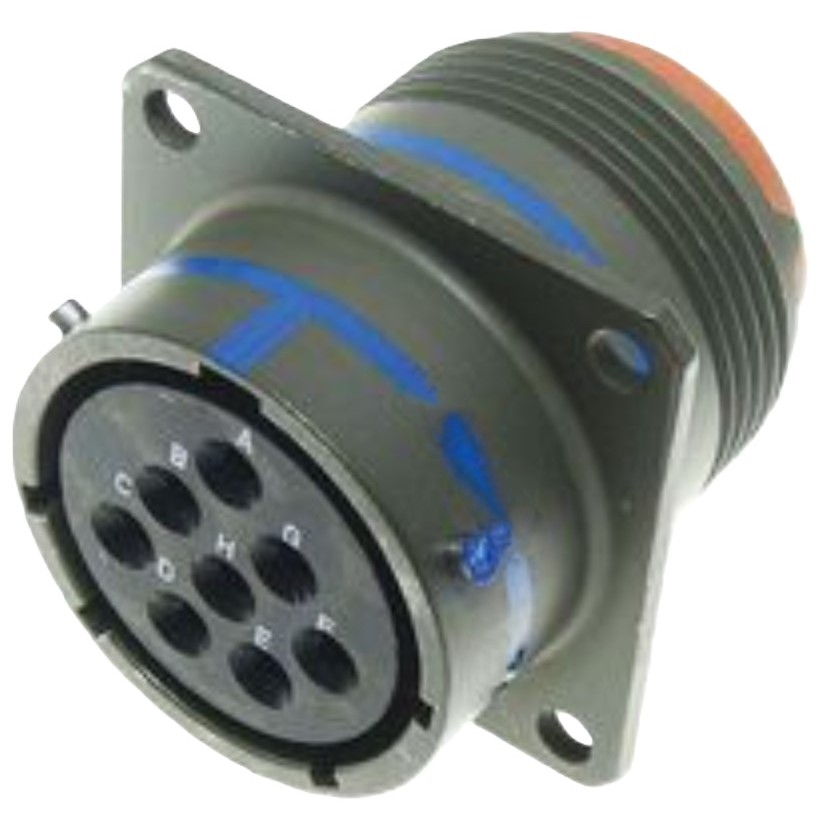

Image shown is a representation only
Manufacturer
Manufacturer No
MS3102A16S-8SX
Packaging
Bulk
Description
5015 WALL MOUNT RECEPTACLE
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder
DataSheet
Mfr
SPI Connects
Color
Olive Drab
Grade
Military
Series
MS
Packaging
Bulk
Shielding
Unshielded
Orientation
X
Part Status
Active
Termination
Solder
Applications
Marine, Military
Shell Finish
Olive Drab Chromate over Cadmium
Cable Opening
0.875" (22.22mm)
Mounting Type
Panel Mount
Qualification
MIL-DTL-5015
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Insert Material
Neoprene
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Number of Positions
5
Shell Size - Insert
16S-8
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
| Attribute | Value |
|---|---|
| Mfr | SPI Connects |
| Color | Olive Drab |
| Grade | Military |
| Series | MS |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | X |
| Part Status | Active |
| Termination | Solder |
| Applications | Marine, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Cable Opening | 0.875" (22.22mm) |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-5015 |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Number of Positions | 5 |
| Shell Size - Insert | 16S-8 |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
