Step1: Product
SPI Connects MS3101E14S-7SX

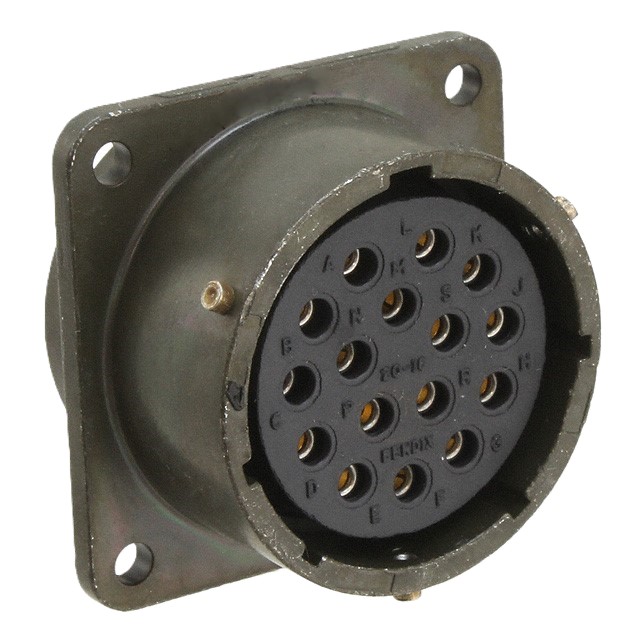

Image shown is a representation only
Manufacturer
Manufacturer No
MS3101E14S-7SX
Packaging
Bulk
Description
5015 CIRCULAR CABLE-MOUNT RECEPT
Detailed Description
5 Position Circular Connector Plug, Female Sockets Solder
DataSheet
Mfr
SPI Connects
Color
Olive Drab
Grade
Military
Series
MS
Packaging
Bulk
Shielding
Unshielded
Orientation
X
Part Status
Active
Termination
Solder
Applications
Marine, Military
Shell Finish
Olive Drab Chromate over Cadmium
Mounting Type
Free Hanging (In-Line)
Qualification
MIL-5015
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
5
Shell Size - Insert
14S-7
Operating Temperature
-55°C ~ 125°C
| Attribute | Value |
|---|---|
| Mfr | SPI Connects |
| Color | Olive Drab |
| Grade | Military |
| Series | MS |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | X |
| Part Status | Active |
| Termination | Solder |
| Applications | Marine, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | MIL-5015 |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 5 |
| Shell Size - Insert | 14S-7 |
| Operating Temperature | -55°C ~ 125°C |
