Step1: Product
SparkFun Electronics 16764
Image shown is a representation only
Manufacturer
Manufacturer No
16764
Packaging
Tube
Description

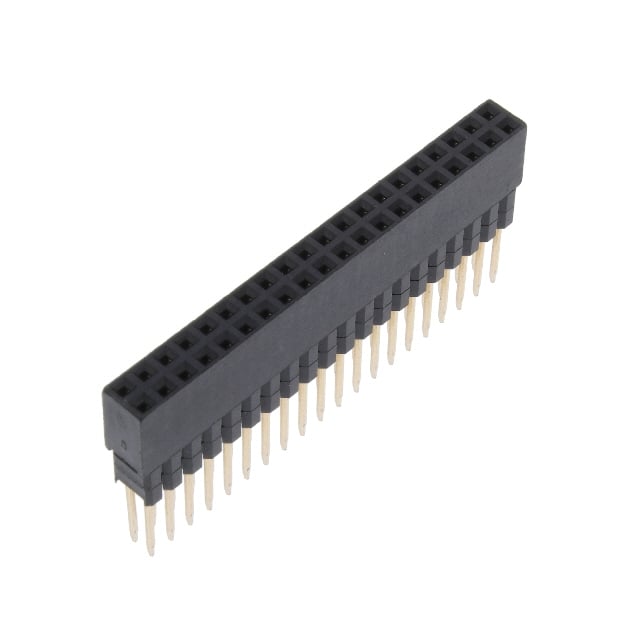

EXTENDED GPIO FEMALE HEADER - 2X
Detailed Description
40 Position Header, Elevated Connector 0.100" (2.54mm) Through Hole Gold
DataSheet
Mfr
SparkFun Electronics
Style
Board to Board
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Forked
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header, Elevated
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.531" (13.50mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
40
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Contact Length - Post
0.386" (9.80mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | SparkFun Electronics |
| Style | Board to Board |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header, Elevated |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.531" (13.50mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.386" (9.80mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
