SparkFun Electronics 15105

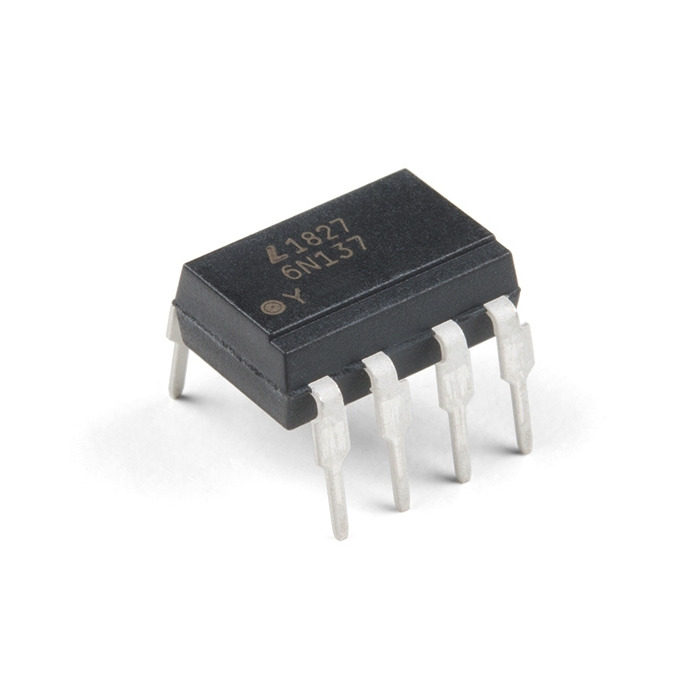

Image shown is a representation only
Manufacturer
Manufacturer No
15105
Package
8-DIP (0.300", 7.62mm)
Packaging
Bulk
Description
OPTOISOLTR 5KV OPEN COLL 8-PDIP
Detailed Description
Logic Output Optoisolator 10MBd Open Collector 5000Vrms 1 Channel 10kV/µs (Typ) CMTI 8-PDIP
DataSheet
Data Rate
10MBd
Packaging
Bulk
Input Type
DC
Output Type
Open Collector
Part Status
Active
Manufacturer
SparkFun Electronics
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Voltage - Supply
7V
Number of Channels
1
Base Product Number
COM-15
Voltage - Isolation
5000Vrms
Operating Temperature
-40°C ~ 85°C
Inputs - Side 1/Side 2
1/0
Rise / Fall Time (Typ)
50ns, 12ns
Supplier Device Package
8-PDIP
Current - Output / Channel
50 mA
Voltage - Forward (Vf) (Typ)
1.45V
Current - DC Forward (If) (Max)
25mA
Propagation Delay tpLH / tpHL (Max)
100ns, 100ns
Common Mode Transient Immunity (Min)
10kV/µs (Typ)
| Attribute | Value |
|---|---|
| Data Rate | 10MBd |
| Packaging | Bulk |
| Input Type | DC |
| Output Type | Open Collector |
| Part Status | Active |
| Manufacturer | SparkFun Electronics |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Voltage - Supply | 7V |
| Number of Channels | 1 |
| Base Product Number | COM-15 |
| Voltage - Isolation | 5000Vrms |
| Operating Temperature | -40°C ~ 85°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | 50ns, 12ns |
| Supplier Device Package | 8-PDIP |
| Current - Output / Channel | 50 mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 25mA |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Common Mode Transient Immunity (Min) | 10kV/µs (Typ) |
