SparkFun Electronics 12639

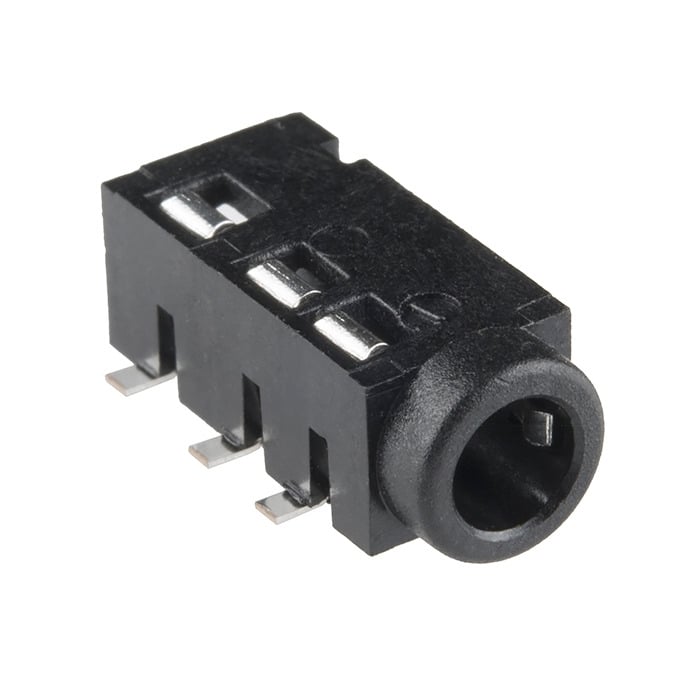

Image shown is a representation only
Manufacturer
Manufacturer No
12639
Packaging
Bulk
Description
AUDIO JACK - 3.5MM TRRS (SMD)
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Mfr
SparkFun Electronics
Gender
Female
Features
Board Guide
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Cable Opening
0.138" (3.50mm)
Mounting Type
Surface Mount, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Voltage - Rated
30V
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA9T), Nylon 9T
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
500 mA
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Silver
Number of Positions/Contacts
4 Conductors, 4 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | SparkFun Electronics |
| Gender | Female |
| Features | Board Guide |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Cable Opening | 0.138" (3.50mm) |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Voltage - Rated | 30V |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 500 mA |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
