Step1: Product

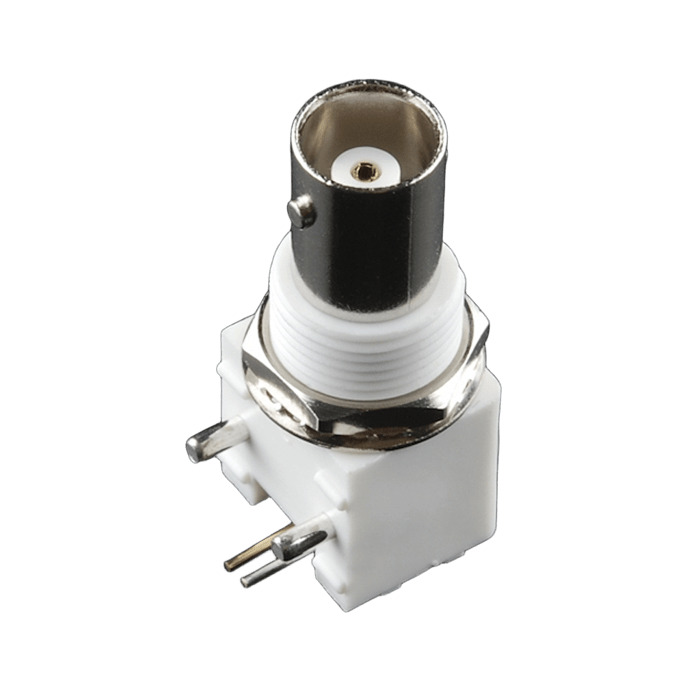

SparkFun Electronics 10550
Image shown is a representation only
Manufacturer
Manufacturer No
10550
Packaging
Bulk
Description
BNC CONNECTOR - RIGHT ANGLE
Detailed Description
BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
Mfr
SparkFun Electronics
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Body Material
Zinc Alloy
Housing Color
Silver
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Connector Style
BNC
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Polybutylene Terephthalate (PBT)
Center Contact Plating
Gold
Center Contact Material
Bronze
| Attribute | Value |
|---|---|
| Mfr | SparkFun Electronics |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Zinc Alloy |
| Housing Color | Silver |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Connector Style | BNC |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Center Contact Plating | Gold |
| Center Contact Material | Bronze |
