Step1: Product
SparkFun Electronics 09052

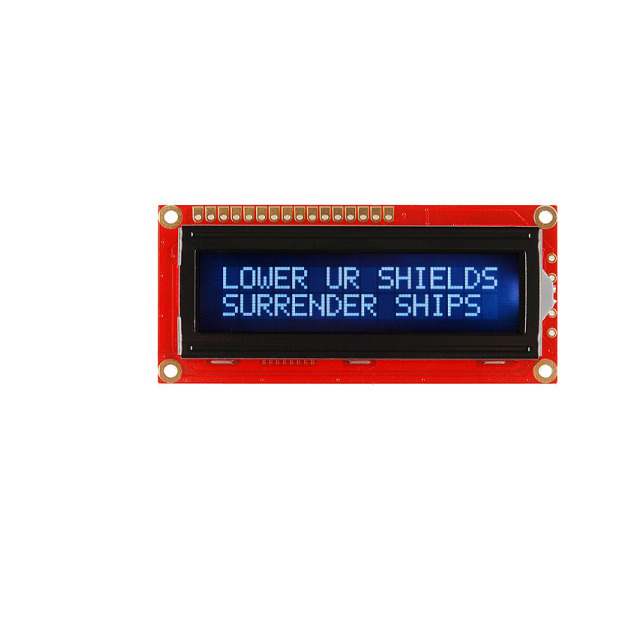

Image shown is a representation only
Manufacturer
Manufacturer No
09052
Packaging
Bulk
Description
BASIC 16X2 CHARACTER LCD - WHITE
Detailed Description
Character Display Module 5 x 8 Dots LCD - Monochrome LED - White Parallel 80.00mm x 36.00mm x 8.60mm
DataSheet
Dot Size
0.56mm W x 0.61mm H
Backlight
LED - White
Interface
Parallel
Packaging
Bulk
Text Color
White
Part Status
Obsolete
Display Type
LCD - Monochrome
Manufacturer
SparkFun Electronics
Viewing Area
64.50mm L x 16.40mm W
Display Format
16 x 2
Controller Type
HD44780, ST7066
Background Color
Black
Character Format
5 x 8 Dots
Voltage - Supply
3V
Outline L x W x H
80.00mm x 36.00mm x 8.60mm
Base Product Number
LCD-090
Number of Characters
32.0
Operating Temperature
0°C ~ 50°C
| Attribute | Value |
|---|---|
| Dot Size | 0.56mm W x 0.61mm H |
| Backlight | LED - White |
| Interface | Parallel |
| Packaging | Bulk |
| Text Color | White |
| Part Status | Obsolete |
| Display Type | LCD - Monochrome |
| Manufacturer | SparkFun Electronics |
| Viewing Area | 64.50mm L x 16.40mm W |
| Display Format | 16 x 2 |
| Controller Type | HD44780, ST7066 |
| Background Color | Black |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 3V |
| Outline L x W x H | 80.00mm x 36.00mm x 8.60mm |
| Base Product Number | LCD-090 |
| Number of Characters | 32.0 |
| Operating Temperature | 0°C ~ 50°C |
